Main Page > TRM Modems > TRM142 > TRM142 Manual > TRM142 Product LabelsThe information in this page is relevant from 001 batch.
Label/Print on the box

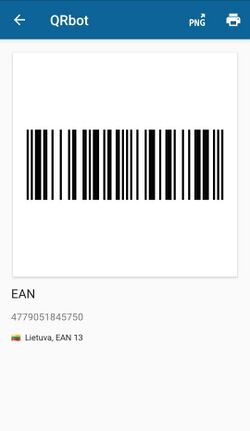

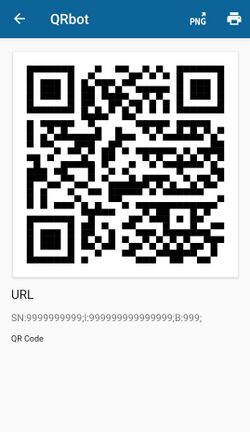

| Information displayed after scanning QR code: | Information displayed after scanning SN Barcode: | Information displayed after scanning Barcode: |
| SN:9999999999;I:999999999999999;B:999; | 9999999999 | 4779051845750 |
|
|
|
| Text on the label/print | QR or Barcode equivalent | Description |
|---|---|---|
| TRM142000000* | - | Product code a.k.a., ordering code, displays under which product code the device was manufactured. Different product codes indicate different versions of the overall product. For example, devices with different product codes may support different LTE bands, come with different accessories, different firmware, etc.
*TRM142000000 is only for standard order codes |
| SERIAL | SN | Serial number is a unique 10-digit device identifier. |
| IMEI | I | The IMEI (International Mobile Equipment Identity) is a unique 15 decimal digit number used to identify cellular modules. GSM network operators use the IMEI to identify devices in their networks |
| EAN | - | The International Article Number (a.k.a. European Article Number or EAN) is a standard describing a barcode symbology and numbering system used in global trade to identify a specific retail product type, in a specific packaging configuration, from a specific manufacturer |
| BATCH NO: | B | Batch number is a number that indicates the batch of materials |
Label on the product
| Information displayed after scanning QR code: | Information displayed after scanning SN Barcode: |
| SN:9999999999;I:999999999999999;B:999; | 9999999999 |
|
|
| Text on the sticker | QR or Barcode equivalent | Description |
|---|---|---|
| SERIAL | SN | Serial number is a unique 10-digit device identifier. |
| IMEI | I | The IMEI (International Mobile Equipment Identity) is a unique 15 decimal digit number used to identify cellular modules. GSM network operators use the IMEI to identify devices in their networks |
| BATCH NO: | B | Batch number is a number that indicates the batch of materials |
