Template:CAP
The information in this page is relevant from {{{batch}}} batch.
Label/Print on the box
[[File:Networking {{{name}}} first start dezutes lipdukas v2.png|400px]]

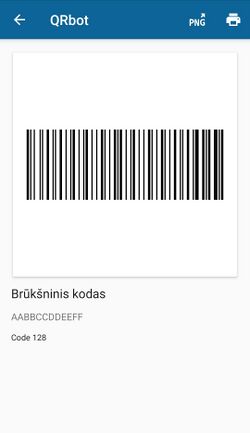

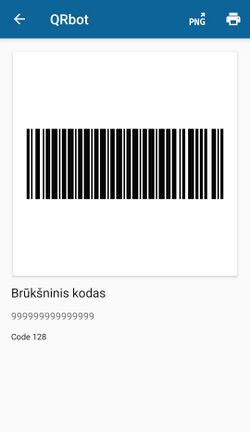

| Information displayed after scanning SN Barcode: | Information displayed after scanning IMEI Barcode: | Information displayed after scanning MAC Barcode: |
| 9999999999 | 999999999999999 | AABBCCDDEEFF |
|
|
|
| Text on the label/print | QR or Barcode equivalent | Description |
|---|---|---|
| SERIAL | SN | Serial number is a unique 10-digit device identifier. It is required when connecting the device to Teltonika's Remote Management System (RMS). The device can be added to RMS via the System → Administration → RMS page |
| IMEI | I | The IMEI (International Mobile Equipment Identity) is a unique 15 decimal digit number used to identify cellular modules. GSM network operators use the IMEI to identify devices in their networks |
| LAN MAC | M | The media access control (MAC) address is a unique identifier used to distinguish a network interface controller for communication in the data link layer (OSI layer2)
Ethernet LAN MAC address - MAC address of the LAN Ethernet network interface. It is also required when connecting the device to Teltonika's Remote Management System (RMS). The device can be added to RMS via the System → Administration → RMS page |
Label on the product
[[File:Networking_{{{name}}}_first_start_gaminio_lipdukas_v1.png|400px]]
| Information displayed after scanning QR code: | Information displayed after scanning SN Barcode: |
| {{{productqr}}} | 9999999999 |
| [[File:Networking_{{{name}}}_first_start_gaminio_QR_v1.jpg|250px]] |
|
Scanning the QR code with your mobile device should allow you to connect to the products WiFi.
| Text on the sticker | QR or Barcode equivalent | Description |
|---|---|---|
| SERIAL | SN | Serial number is a unique 10-digit device identifier. It is required when connecting the device to Teltonika's Remote Management System (RMS). The device can be added to RMS via the System → Administration → RMS page |
| IMEI | I | The IMEI (International Mobile Equipment Identity) is a unique 15 decimal digit number used to identify cellular modules. GSM network operators use the IMEI to identify devices in their networks |
| LAN MAC | M | The media access control (MAC) address is a unique identifier used to distinguish a network interface controller for communication in the data link layer (OSI layer2)
Ethernet LAN MAC address - MAC address of the LAN Ethernet network interface. It is also required when connecting the device to Teltonika's Remote Management System (RMS). The device can be added to RMS via the System → Administration → RMS page |
| SSID 2.4GHz or 5GHz | S | The broadcasted SSID (Service Set Identifier) of the wireless network |
| WIFI PASSWORD | P | A custom passphrase used for authentication (at least 8 characters long) |
| USERNAME | U | A default value "admin" is used for product connection |
| PASSWORD | PW | A custom passphrase used for product connection (at least 8 characters long) |
