Introduction
Mobile 5G antennas are a crucial component in enabling fifth-generation wireless communication, providing significantly faster data speeds, lower latency, and greater connectivity capacity compared to previous generations. These antennas support the wide range of frequencies used in 5G networks, spanning from sub-6 GHz bands to millimeter wave bands, which allows for flexible deployment across different environments and use cases.
Antennas

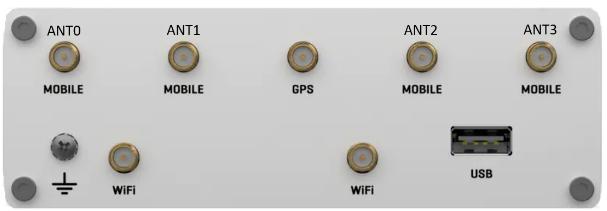

All four mobile antenna ports are considered MAIN ports
- Ports ANT0 and ANT3 are TRX (Transmit/Receive).
- The middle ports (ANT1 and ANT2) are DRX (Diversity Receive), which enhance signal reception but do not transmit.
- For the best performance, it is recommended to connect antennas to all four ports.
- If connecting only two antennas, prioritize ANT0 and ANT3 since they handle both transmission and reception (TRX).
Antenna Connections and Band Assignments.
RUT Series
Antenna Connections and Band Assignments RUTX50
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n41/n77/n78 TRX1 |
n41 DRX1 & n77/n78 DRX1 |
n41 DRX0 & n77/n78 DRX0 |
n41/n77/n78 TRX0
|
| 4G LTE |
LMHB_TRX & UHB_PRX MIMO |
LMHB_DRX & UHB_DRX MIMO |
LMHB_DRX MIMO & UHB_DRX |
LMHB_PRX MIMO & UHB_TRX & LMHB_TRX1
|
| 3G WCDMA |
LMHB_TRX |
LMHB_DRX |
- |
-
|
Abbreviations and Frequency Bands
| Abbreviation |
Explanation |
Frequency Bands / Details
|
| PRX |
Primary receive |
|
| TRX |
Transmit/Receive |
|
| DRX |
Diversity receive |
|
| LMHB |
Lower/Middle/High band |
617-960 MHz, 1452-2690 MHz
|
| UHB |
Ultra high band |
3400-3800 MHz
|

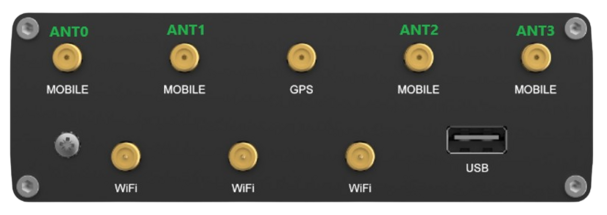

Antenna Connections and Band Assignments RUTC50
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| LTE |
LMB_TRX0 & HB_DRX & UHB_TRX0 |
B71_PRX MIMO & MB_PRX MIMO & HB_DRX MIMO & UHB_PRX MIMO & B32_PRX |
B71_DRX MIMO & MB_DRX MIMO & HB_PRX MIMO & UHB_DRX MIMO & B32_DRX |
LMB_TRX1 & HB_TRX0 & UHB_TRX1
|
| Refarming |
LMB_TRX0 & HB_TRX1 |
n71_PRX MIMO & MB_PRX MIMO & HB_DRX MIMO & n75/n76_PRX |
n71_DRX MIMO & MB_DRX MIMO & HB_PRX MIMO & n75/n76_DRX |
LMB_TRX1 & HB_TRX0
|
| 3G WCDMA |
LMB_TRX |
- |
- |
LMB_DRX
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|

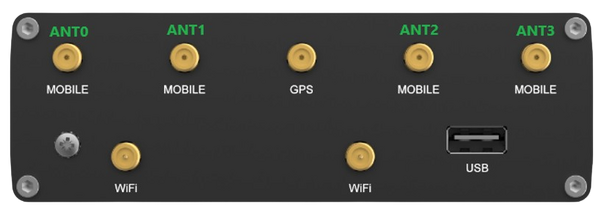

Antenna Connections and Band Assignments RUTM50
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO & n75/n76 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO & n75/n76 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| LTE |
LMB_TRX0 & HB_DRX & UHB_TRX0 |
MB_PRX MIMO & HB_DRX MIMO & UHB_PRX MIMO & B32_PRX MIMO |
MB_DRX MIMO & HB_PRX MIMO & UHB_DRX MIMO & B32_DRX MIMO |
LMB_TRX1 & HB_TRX0 & UHB_TRX1
|
| Refarming |
LMB_TRX0 & HB_TRX1 |
MB_PRX MIMO & HB_DRX MIMO |
MB_DRX MIMO & HB_PRX MIMO |
LMB_TRX1 & HB_TRX0
|
| WCDMA |
LMB_TRX |
- |
- |
LMB_DRX
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|
Antenna Connections and Band Assignments RUTM51
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n1/n3/n7/n28/n66 PRX1 & n5/n8 TRX & n38/n40/n41 TRX1 & n77/n78 DRX0 |
n1/n3/n7/n28/n38/n40/n41/n66 DRX1 & n5/n8/n20 DRX & n77/n78 TX1 & PRX1 |
LMHB DRX0 & n77/n78 DRX1 |
LMHB & n77/n78 TRX0
|
| 4G LTE |
LMHB TRX & LMB PRX |
LMHB DRX MIMO & UHB DRX |
- |
-
|
| 3G WCDMA |
LMB TRX |
LMB DRX |
- |
-
|
| Refarming |
n1/n3/n7/n28/n66 PRX1 & n5/n8 TRX & n38/n40 TRX1 |
n1/n3/n7/n28/n38/n40/n66 DRX1 & n5/n8/n20 DRX |
- |
-
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|

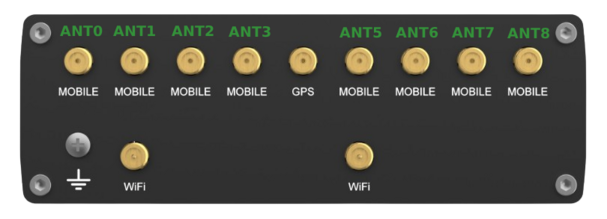

Antenna Connections and Band Assignments RUTM52
| Band |
ANT0/ANT5 |
ANT1/ANT6 |
ANT2/ANT7 |
ANT3/ANT8
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB TRX0 & HB DRX & UHB TRX0 |
B71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & UHB PRX MIMO & B32 PRX |
B71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & UHB DRX MIMO & B32 DRX |
LMB TRX1 & HB TRX0 & UHB TRX1
|
| 3G WCDMA |
LMB TRX |
- |
- |
LMB DRX
|
| Refarming |
LMB TRX0 & HB TRX1 |
n71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & n75/n76 PRX |
n71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & n75/n76 DRX |
LMB TRX1 & HB TRX0
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|

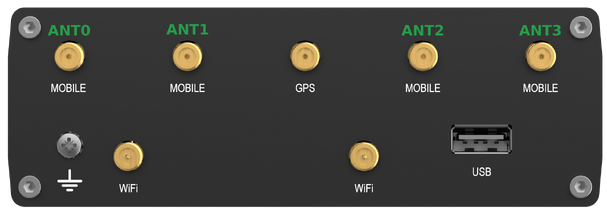

Antenna Connections and Band Assignments RUTM54
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n1 PRX/TRX0 MIMO1 & n2 PRX/TRX0 MIMO1 & n3 PRX/TRX0 MIMO1 & n5 PRX/TRX0 & n7 PRX/TRX0 MIMO1 & n8 PRX/TRX0 & n12 PRX/TRX0 & n13 PRX/TRX0 & n14 PRX/TRX0 & n18 PRX/TRX0 & n20 PRX/TRX0 & n25 PRX/TRX0 MIMO1 & n26 PRX/TRX0 & n28 PRX/TRX0 & n30 PRX/TRX0 MIMO1 & n38 DRX/TRX1 MIMO1 & n40 PRX/TRX0 MIMO1 & n41 DRX/TRX1 MIMO1 & n66 PRX/TRX0 MIMO1 & n71 PRX/TRX0 |
n48 DRX MIMO2/TRX1 MIMO1 & n77 DRX MIMO2/TRX1 MIMO1 & n78 DRX MIMO2/TRX1 MIMO1 & n79 DRX MIMO2/TRX1 MIMO1 & n1 PRX/TRX0 MIMO1 & n2 PRX/TRX0 MIMO1 & n3 PRX/TRX0 MIMO1 & n7 PRX/TRX0 MIMO1 & n25 PRX/TRX0 MIMO1 & n30 PRX/TRX0 MIMO1 & n38 PRX/TRX0 MIMO2 & n40 PRX/TRX0 MIMO1 & n41 PRX/TRX0 MIMO2 & n48 PRX/TRX0 & n66 PRX/TRX0 MIMO1 & n75 PRX MIMO1 & n76 PRX MIMO1 & n77 PRX/TRX0 MIMO1 & n78 PRX/TRX0 MIMO1 & n79 PRX/TRX0 MIMO1 |
n38 PRX/TRX0 MIMO2 & n41 PRX/TRX0 MIMO2 & n1 PRX/TRX0 MIMO1 & n2 PRX/TRX0 MIMO1 & n3 PRX/TRX0 MIMO1 & n5 PRX/TRX0 & n7 PRX/TRX0 MIMO1 & n8 PRX/TRX0 & n12 PRX/TRX0 & n13 PRX/TRX0 & n14 PRX/TRX0 & n18 PRX/TRX0 & n20 PRX/TRX0 & n25 PRX/TRX0 MIMO1 & n26 PRX/TRX0 & n28 PRX/TRX0 & n29 PRX & n30 PRX/TRX0 MIMO1 & n38 PRX/TRX0 & n40 PRX/TRX0 & n41 PRX/TRX0 & n48 PRX/TRX0 & n66 PRX/TRX0 & n71 PRX/TRX0 & n75 PRX MIMO1 & n76 PRX MIMO1 & n77 PRX/TRX0 MIMO1 & n78 PRX/TRX0 MIMO1 & n79 PRX/TRX0 MIMO1 |
n48 DRX MIMO2/TRX1 MIMO1 & n77 DRX MIMO2/TRX1 MIMO1 & n78 DRX MIMO2/TRX1 MIMO1 & n79 DRX MIMO2/TRX1 MIMO1 & n1 PRX/TRX0 MIMO1 & n2 PRX/TRX0 MIMO1 & n3 PRX/TRX0 MIMO1 & n7 PRX/TRX0 MIMO1 & n25 PRX/TRX0 MIMO1 & n30 PRX/TRX0 MIMO1 & n38 PRX/TRX0 MIMO2 & n40 PRX/TRX0 MIMO1 & n41 PRX/TRX0 MIMO2 & n48 PRX/TRX0 & n66 PRX/TRX0 MIMO1 & n75 PRX MIMO1 & n76 PRX MIMO1 & n77 PRX/TRX0 MIMO1 & n78 PRX/TRX0 MIMO1 & n79 PRX/TRX0 MIMO1
|
| LTE |
B1 PRX/TRX0 MIMO1 & B2 PRX/TRX0 MIMO1 & B3 PRX/TRX0 MIMO1 & B4 PRX/TRX0 MIMO1 & B5 PRX/TRX0 & B7 PRX/TRX0 MIMO1 & B8 PRX/TRX0 & B12 PRX/TRX0 & B13 PRX/TRX0 & B14 PRX/TRX0 & B17 PRX/TRX0 & B18 PRX/TRX0 & B19 PRX/TRX0 & B20 PRX/TRX0 & B25 PRX/TRX0 MIMO1 & B26 PRX/TRX0 & B28 PRX/TRX0 & B30 PRX/TRX0 MIMO1 & B34 PRX/TRX0 MIMO1 & B38 PRX/TRX0 MIMO1 & B39 PRX/TRX0 MIMO1 & B40 PRX/TRX0 MIMO1 & B41 PRX/TRX0 MIMO1 & B66 PRX/TRX0 MIMO1 & B71 PRX/TRX0 |
B42 DRX MIMO2 & B43 DRX MIMO2 & B48 DRX MIMO2 & B1 & B2 & B3 & B4 & B7 & B25 & B30 & B32 & B34 & B38 & B39 & B40 & B41 & B42 & B43 & B48 & B66 Rx |
B1 & B2 & B3 & B4 & B5 & B7 & B8 & B12 & B13 & B14 & B17 & B18 & B19 & B20 & B25 & B26 & B28 & B29 & B30 & B32 & B34 & B38 & B39 & B40 & B41 & B42 & B43 & B46 & B48 & B66 & B71 Rx |
B42 DRX MIMO2 & B43 DRX MIMO2 & B48 DRX MIMO2 & B1 & B2 & B3 & B4 & B7 & B25 & B30 & B32 & B34 & B38 & B39 & B40 & B41 & B42 & B43 & B48 & B66 Rx
|
| WCDMA |
B1 PRX/TRX0 & B2 PRX/TRX0 & B4 PRX/TRX0 & B5 PRX/TRX0 & B6 PRX/TRX0 & B8 PRX/TRX0 & B19 PRX/TRX0 |
- |
- |
B1 DRX & B2 DRX & B4 DRX & B5 DRX & B6 DRX & B8 DRX & B19 DRX
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| Tx |
Transmit
|
| DRX |
Diversity receive
|
| MIMO1 |
MIMO layer 1
|
| MIMO2 |
MIMO layer 2
|

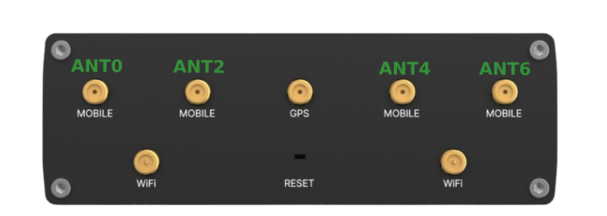

Antenna Connections and Band Assignments RUTM55
| Band |
ANT0 |
ANT2 |
ANT4 |
ANT6
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB TRX0 & HB DRX & UHB TRX0 |
B71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & UHB PRX MIMO & B32 PRX |
B71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & UHB DRX MIMO & B32 DRX |
LMB TRX1 & HB TRX0 & UHB TRX1
|
| 3G WCDMA |
LMB TRX |
- |
- |
LMB DRX
|
| Refarming |
LMB TRX0 & HB TRX1 |
n71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & n75/n76 PRX |
n71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & n75/n76 DRX |
LMB TRX1 & HB TRX0
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|

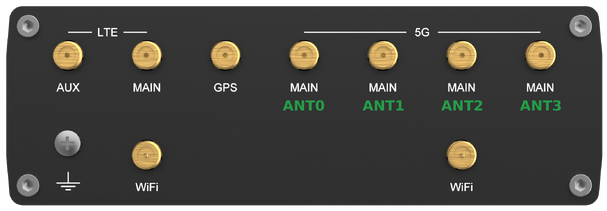

Antenna Connections and Band Assignments RUTM56
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB TRX0 & HB DRX & UHB TRX0 |
B71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & UHB PRX MIMO & B32 PRX |
B71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & UHB DRX MIMO & B32 DRX |
LMB TRX1 & HB TRX0 & UHB TRX1
|
| 3G WCDMA |
LMB TRX |
- |
- |
LMB DRX
|
| Refarming |
LMB TRX0 & HB TRX1 |
n71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & n75/n76 PRX |
n71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & n75/n76 DRX |
LMB TRX1 & HB TRX0
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|

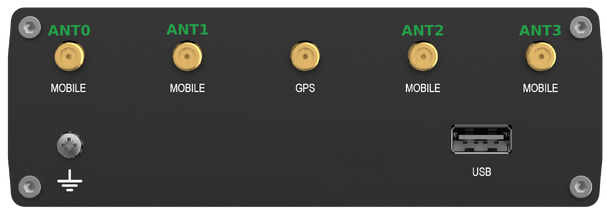

Antenna Connections and Band Assignments RUTM59
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 DRX MIMO |
n41 PRX MIMO & n77/n78 PRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB_TRX0 & HB_DRX & UHB_TRX0 |
LMB_PRX MIMO & HB_DRX MIMO & UHB_DRX MIMO & LAA_PRX |
LMB_DRX MIMO & HB_PRX MIMO & UHB_PRX MIMO & LAA_DRX |
LMB_TRX1 & HB_TRX0 & UHB_TRX1
|
| Refarming |
LMB_TRX0 & HB_TRX1 & UHB_TRX0 |
LMB_PRX MIMO & HB_DRX MIMO & UHB_DRX MIMO |
LMB_DRX MIMO & HB_PRX MIMO & UHB_PRX MIMO |
LMB_TRX1 & HB_TRX0 & UHB_TRX1
|
Abbreviations and Frequency Bands
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMB |
Lower/Middle/High band
|
| HB |
High band
|
| UHB |
Ultra high band
|
| LAA |
Licensed Assisted Access
|

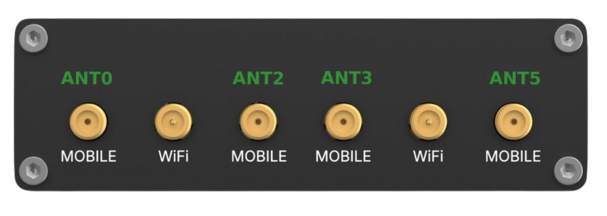

Antenna Connections and Band Assignments RUTM31
| Band |
ANT0 |
ANT2 |
ANT3 |
ANT5
|
| 5G NR |
n1/n3/n7/n28/n66 PRX1 & n5/n8 TRX & n38/n40/n41 TRX1 & n77/n78 DRX0 |
n1/n3/n7/n28/n38/n40/n41/n66 DRX1 & n5/n8/n20 DRX & n77/n78 TX1 & PRX1 |
LMHB DRX0 & n77/n78 DRX1 |
LMHB & n77/n78 TRX0
|
| 4G LTE |
LMHB TRX & LMB PRX |
LMHB DRX MIMO & UHB DRX |
- |
-
|
| 3G WCDMA |
LMB TRX |
LMB DRX |
- |
-
|
| Refarming |
n1/n3/n7/n28/n66 PRX1 & n5/n8 TRX & n38/n40 TRX1 |
n1/n3/n7/n28/n38/n40/n66 DRX1 & n5/n8/n20 DRX |
- |
-
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|
Antenna Connections and Band Assignments RUTM30
| Band |
ANT0 |
ANT2 |
ANT3 |
ANT5
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB TRX0 & HB DRX & UHB TRX0 |
B71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & UHB PRX MIMO & B32 PRX |
B71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & UHB DRX MIMO & B32 DRX |
LMB TRX1 & HB TRX0 & UHB TRX1
|
| 3G WCDMA |
LMB TRX |
- |
- |
LMB DRX
|
| Refarming |
LMB TRX0 & HB TRX1 |
n71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & n75/n76 PRX |
n71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & n75/n76 DRX |
LMB TRX1 & HB TRX0
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|
TRB Series

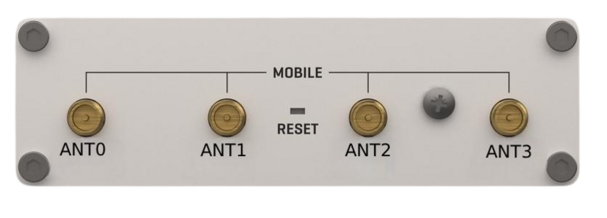

Antenna Connections and Band Assignments TRB500
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n41/n77/n78 TRX1 |
n41 DRX1 & n77/n78 DRX1 |
n41 DRX0 & n77/n78 DRX0 |
n41/n77/n78 TRX0
|
| 4G LTE |
LMHB_TRX & UHB_PRX MIMO |
LMHB_DRX & UHB_DRX MIMO |
LMHB_DRX MIMO & UHB_DRX |
LMHB_PRX MIMO & UHB_TRX & LMHB_TRX1
|
| 3G WCDMA |
LMHB_TRX |
LMHB_DRX |
- |
-
|
Abbreviations and Frequency Bands
| Abbreviation |
Explanation |
Frequency Bands / Details
|
| PRX |
Primary receive |
|
| TRX |
Transmit/Receive |
|
| DRX |
Diversity receive |
|
| LMHB |
Lower/Middle/High band |
617-960 MHz, 1452-2690 MHz
|
| UHB |
Ultra high band |
3400-3800 MHz
|

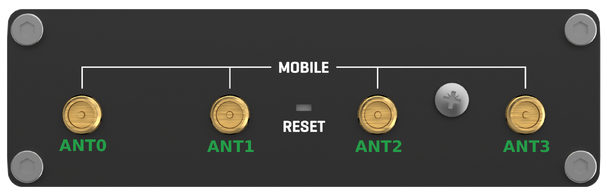

Antenna Connections and Band Assignments TRB501
| Band |
ANT0 |
ANT1 |
ANT2 |
ANT3
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB TRX0 & HB DRX & UHB TRX0 |
B71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & UHB PRX MIMO & B32 PRX |
B71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & UHB DRX MIMO & B32 DRX |
LMB TRX1 & HB TRX0 & UHB TRX1
|
| 3G WCDMA |
LMB TRX |
- |
- |
LMB DRX
|
| Refarming |
LMB TRX0 & HB TRX1 |
n71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & n75/n76 PRX |
n71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & n75/n76 DRX |
LMB TRX1 & HB TRX0
|
Abbreviations and Frequency Bands
| Abbreviation |
Explanation |
Frequency Bands / Details
|
| PRX |
Primary receive |
|
| TRX |
Transmit/Receive |
|
| DRX |
Diversity receive |
|
| LMHB |
Lower/Middle/High band |
617-960 MHz, 1452-2690 MHz
|
| UHB |
Ultra high band |
3400-3800 MHz
|
TRM Series

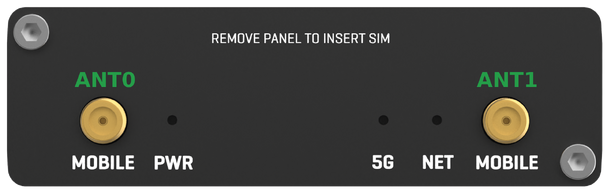

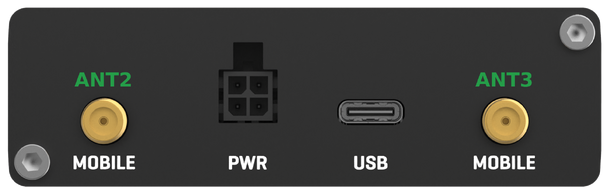

Antenna Connections and Band Assignments TRM500
| Band |
ANT0 |
ANT2 |
ANT4 |
ANT6
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB TRX0 & HB DRX & UHB TRX0 |
B71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & UHB PRX MIMO & B32 PRX |
B71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & UHB DRX MIMO & B32 DRX |
LMB TRX1 & HB TRX0 & UHB TRX1
|
| 3G WCDMA |
LMB TRX |
- |
- |
LMB DRX
|
| Refarming |
LMB TRX0 & HB TRX1 |
n71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & n75/n76 PRX |
n71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & n75/n76 DRX |
LMB TRX1 & HB TRX0
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|
ATRM Series

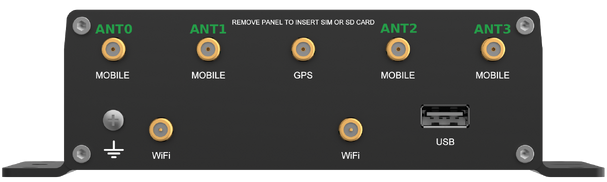

Antenna Connections and Band Assignments ATRM50
| Band |
ANT0 |
ANT2 |
ANT4 |
ANT6
|
| 5G NR |
n41 TRX1 & n77/n78 TRX0 |
n41 DRX MIMO & n77/n78 PRX MIMO |
n41 PRX MIMO & n77/n78 DRX MIMO |
n41 TRX0 & n77/n78 TRX1
|
| 4G LTE |
LMB TRX0 & HB DRX & UHB TRX0 |
B71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & UHB PRX MIMO & B32 PRX |
B71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & UHB DRX MIMO & B32 DRX |
LMB TRX1 & HB TRX0 & UHB TRX1
|
| 3G WCDMA |
LMB TRX |
- |
- |
LMB DRX
|
| Refarming |
LMB TRX0 & HB TRX1 |
n71 PRX MIMO & MB PRX MIMO & HB DRX MIMO & n75/n76 PRX |
n71 DRX MIMO & MB DRX MIMO & HB PRX MIMO & n75/n76 DRX |
LMB TRX1 & HB TRX0
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|
RedCap Devices

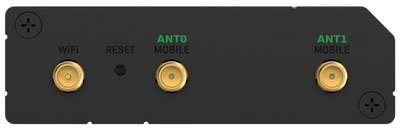

Antenna Connections and Band Assignments RUT271
| Band |
ANT0 |
ANT1
|
| 5G NR |
LB/MHB/UHB TRX |
LB/MHB/UHB DRX
|
| LTE |
LB/MHB/UHB TRX |
LB/MHB/UHB DRX
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|

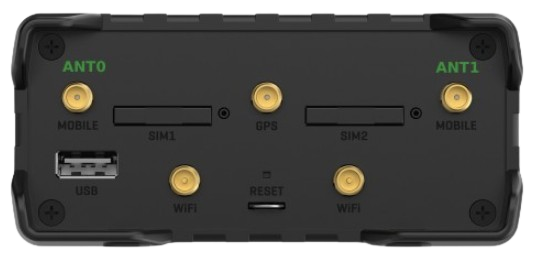

Antenna Connections and Band Assignments RUT976
| Band |
ANT0 |
ANT1
|
| 5G NR |
LB/MHB/UHB TRX |
LB/MHB/UHB DRX
|
| LTE |
LB/MHB/UHB TRX |
LB/MHB/UHB DRX
|
Abbreviations
| Abbreviation |
Explanation
|
| PRX |
Primary receive
|
| TRX |
Transmit/Receive
|
| DRX |
Diversity receive
|
| LMHB |
Lower/Middle/High band
|
| UHB |
Ultra high band
|
