NTP001 Time

The information in this page is updated in accordance with firmware version NTP_R_00.01.01.

Time

General settings

The General settings section lets you select time zone, synchronize the time from GPS and make the device act as an NTP server so that it can provide time synchronization services for other network devices.

Field	Value	Description
NTP server IP address	IP, mac address	Device IP/mac address.
Current system time	time	Current system time.
Time zone	time zone; default: UTC	The device will synchronize its time in accordance with the specified time zone.
Enable NTP server	off | on; default: off	This is used to make the device act as an NTP server so that it can provide time synchronization services for other network devices.
Enable NTP config from file	off | on; default: off	Run NTPD with uploaded configuration file.
NTP configuration file	-(interactive button)	Warning! This will overwrite your current configuration.
GNSS mode	GPS | Galileo | Glonass | BeiDou; default: GPS	Select support of certain satellite types.

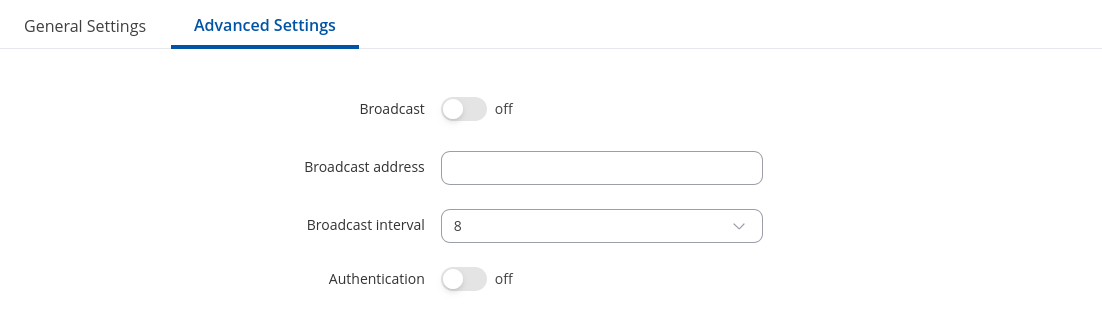

Advanced settings

Field	Value	Description
Broadcast	off | on; default: off	Enables NTP broadcast mode.
Broadcast address	ipv4; default: none	Specifies the network address where NTP broadcast messages will be sent.
Broadcast interval	8 | 16 | 32 | 64 ......| 2048; default: 8	Broadcast interval in seconds.
Authentication	off | on; default: off	Enables NTP authentication.
Key type	MD5 | SHA1; default: MD5	Defines the type of NTP authentication to be used.
Key	string; default: none	Specifies the authentication key, a shared secret used between the NTP server and clients.
