This Wiki page contains the online version of the Quick Start Guide (QSG) for the Calyx Embedded Cellular Raspberry Pi HAT+. Here, you will find an overview of the various physical interfaces of a Calyx, hardware installation instructions, first login information, device specifications, conformity, and general safety information. It is highly recommended that you acquaint yourself with the Quick Start Guide before using the device. You can also locate a printed short version of the Quick Start Guide in your device's packaging box.



Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070	Calyx 5G / EBD050	Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070	Calyx 5G / EBD050

Safety information

Before starting operating the device, please review recommendations and precautions to minimize the possibility of accidents. Safety precautions presented are supplementary and subject to the local safety regulations. When various operations are executed on the device, the user must fully follow the safety instructions and recommendations provided with the device.

General

Calyx 4G / EBD021

Radio specifications
RF technologies	Mobile (2G/3G/4G)
Max RF power	32dBm@GSM, 25dBm@WCDMA, 24dBm@LTE

Calyx 5G / EBD050

Radio specifications
RF technologies	Mobile (3G/4G/5G)
Max RF power	25dBm@WCDMA, 28dBm@LTE, 28dBm@5G

Calyx 5G Red Cap / EBD070

Radio specifications
RF technologies	Mobile (4G/5G)
Max RF power	28dBm@LTE, 28dBm@5G

* Order code dependant.

** Higher gain antenna can be connected to compensate for cable attenuation when a cable is used. The user is responsible for the compliance with the legal regulations.

Quick Start Guide

Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070

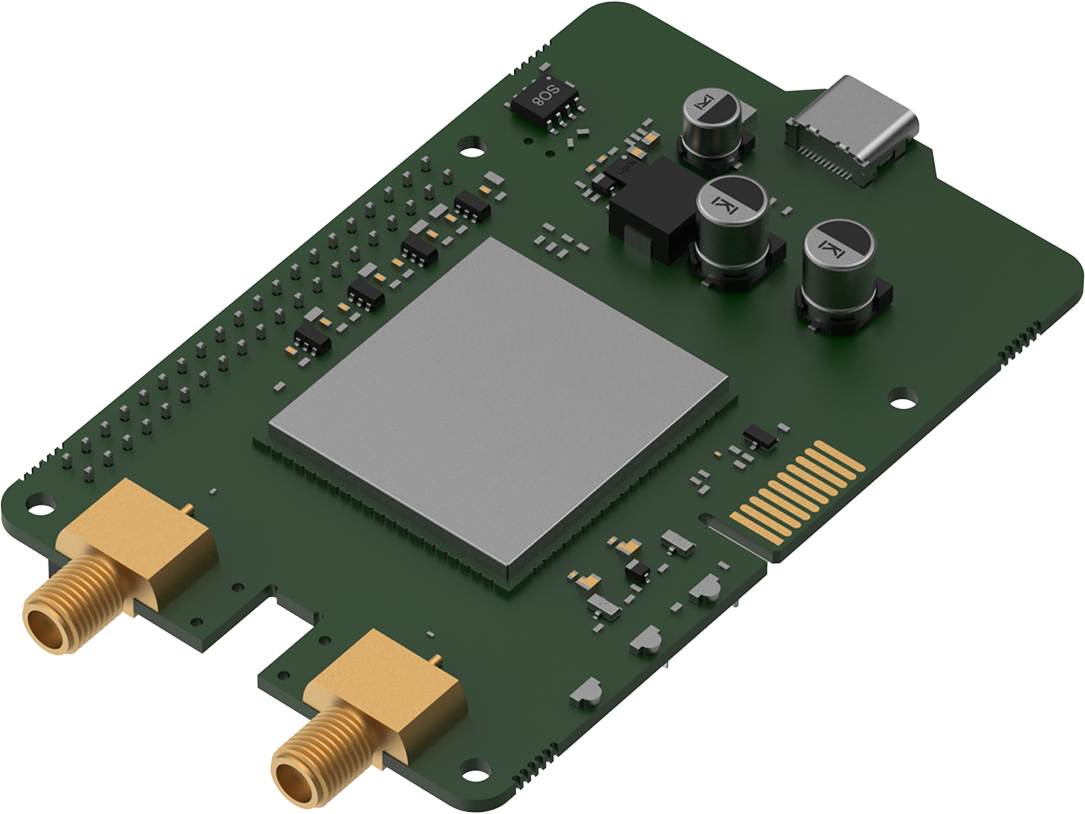

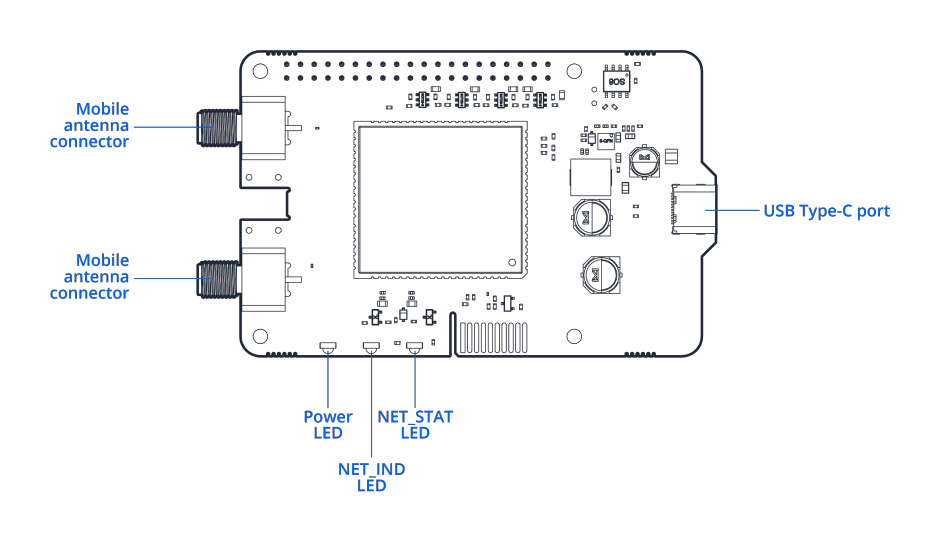

Top view

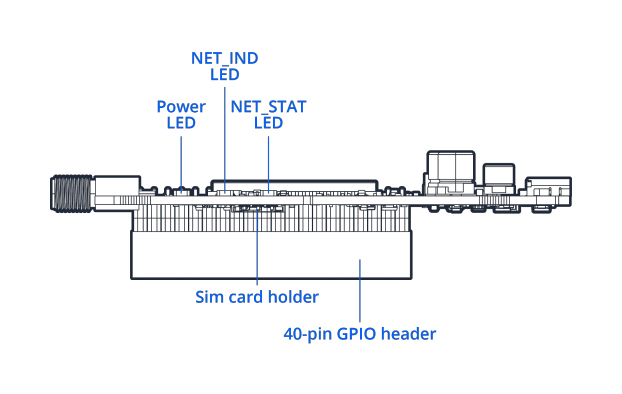

Left View

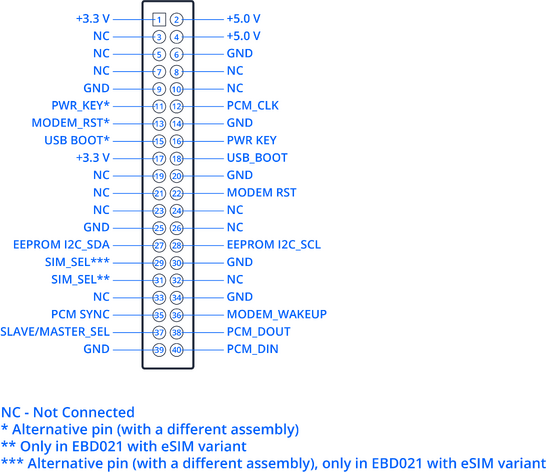

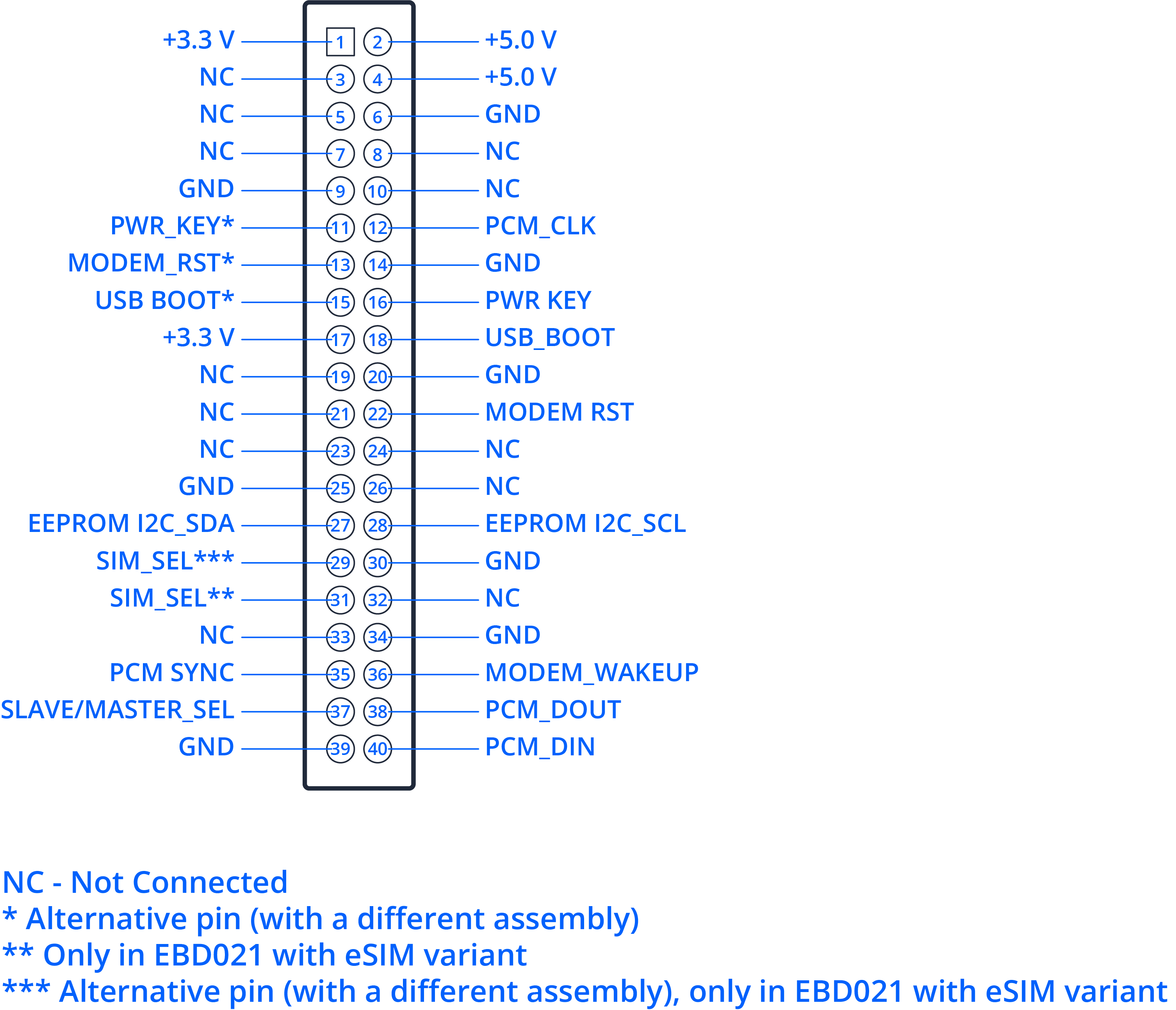

GPIO Connector Pinout

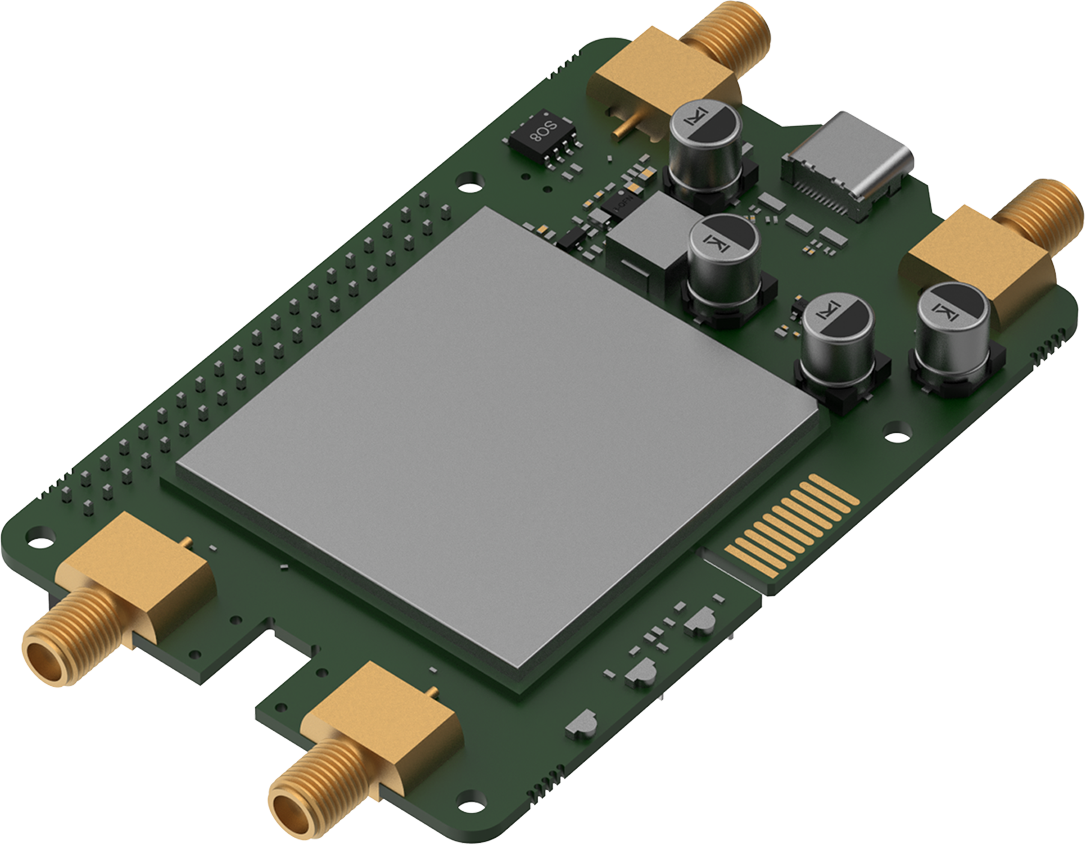

Calyx 5G / EBD050

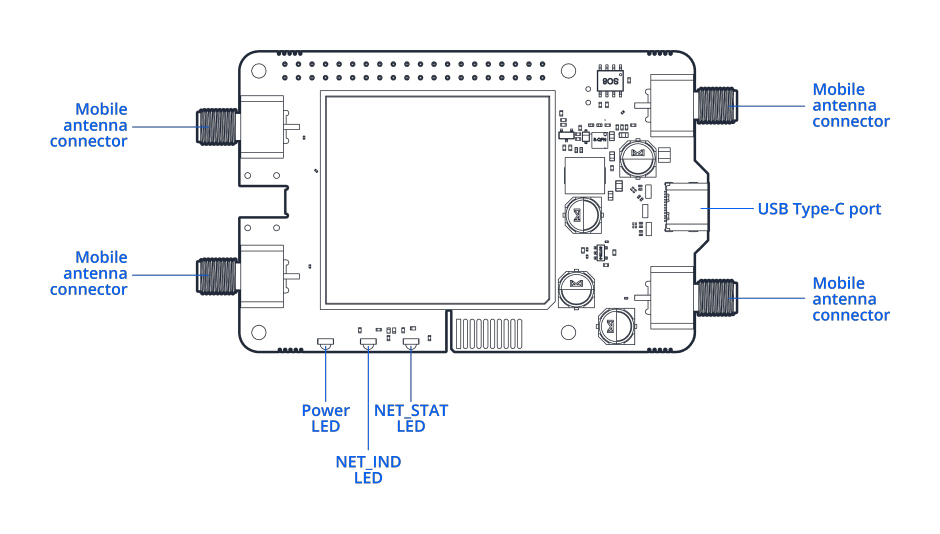

Top view

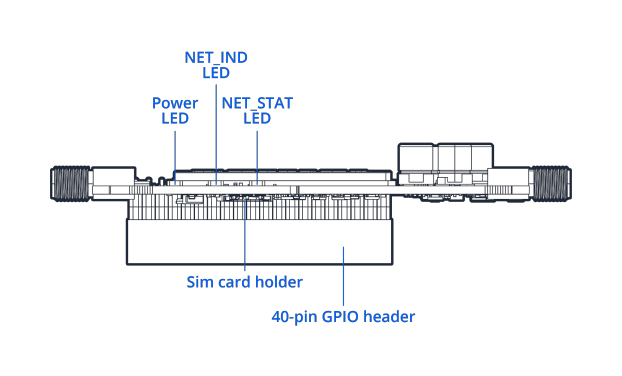

Left View

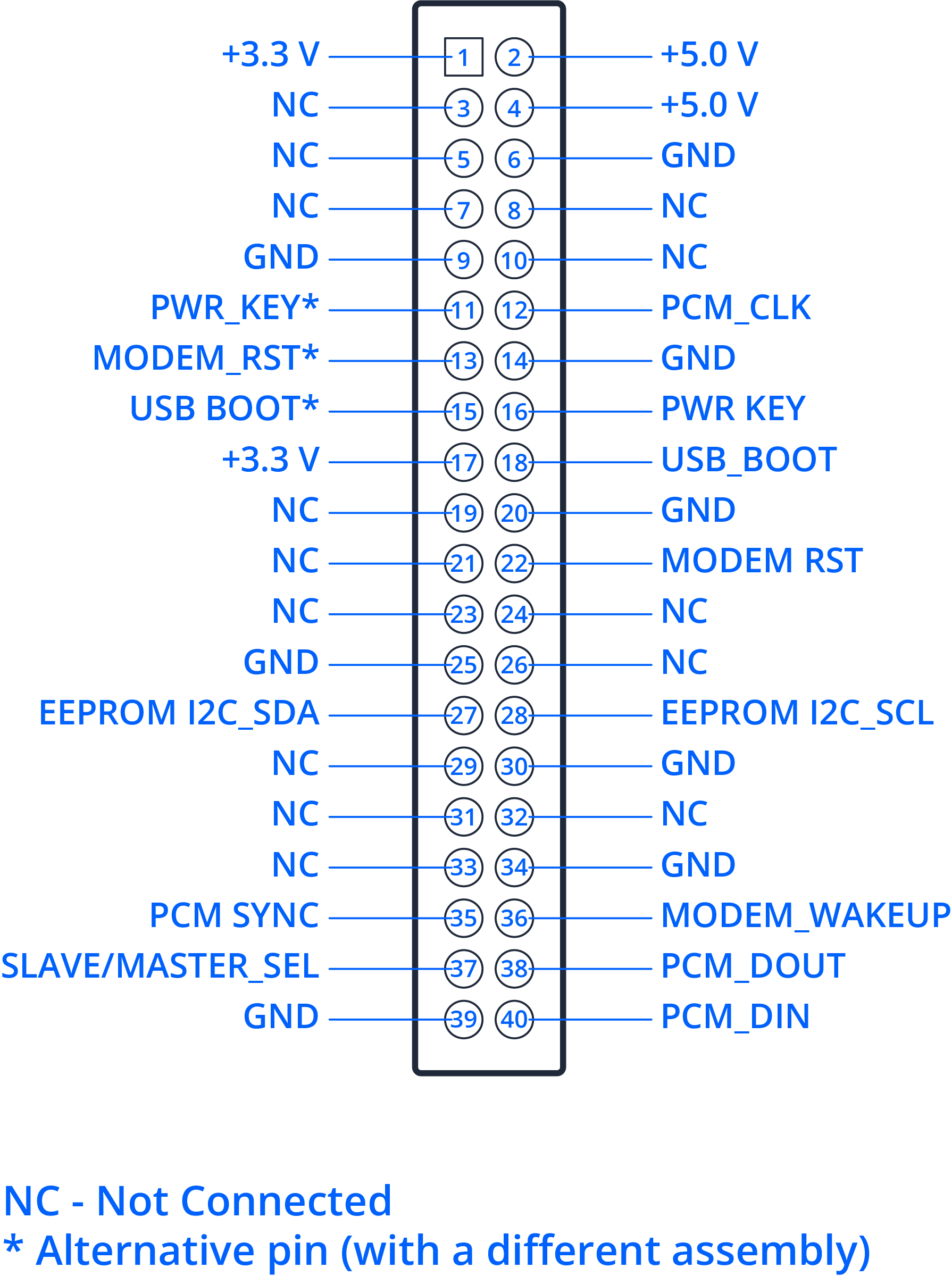

GPIO Connector Pinout

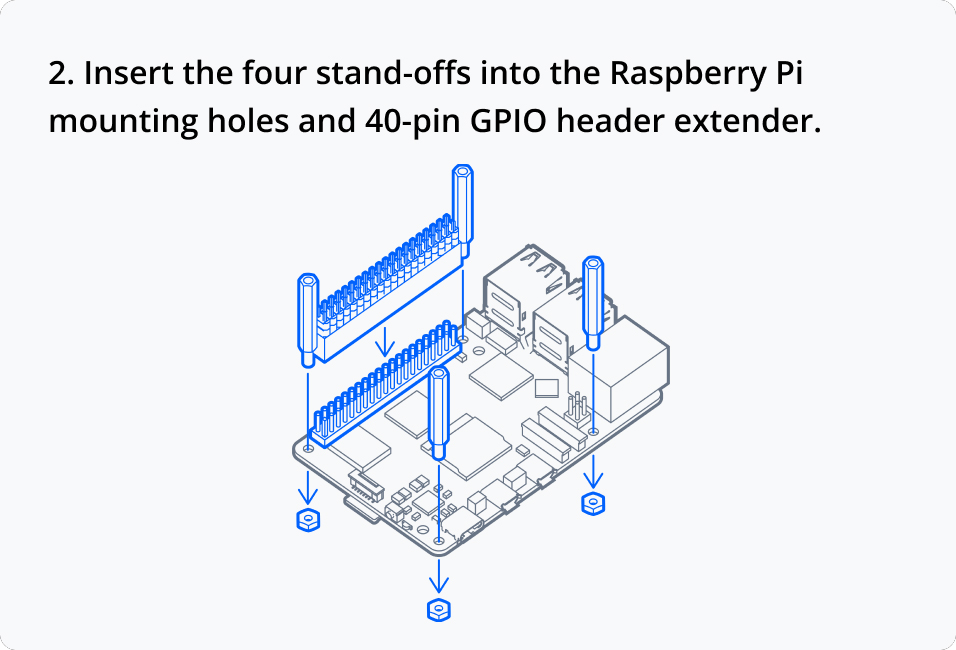

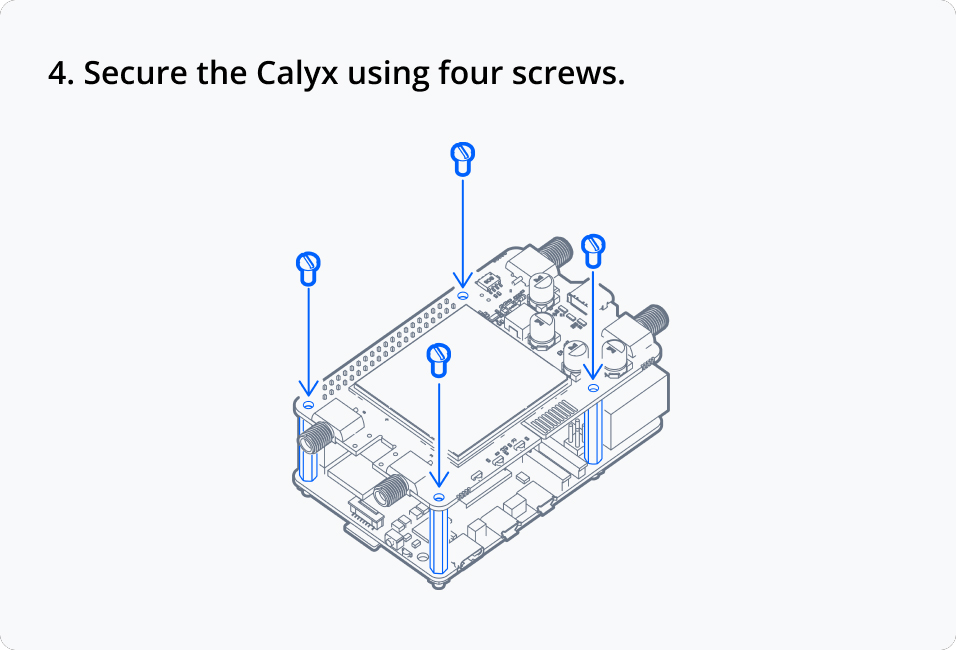

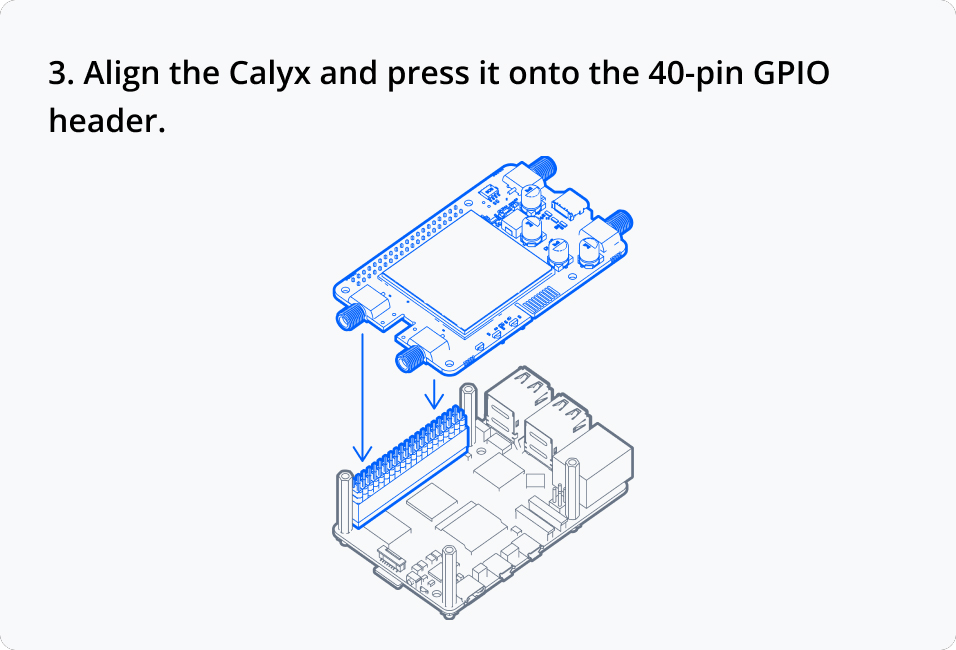

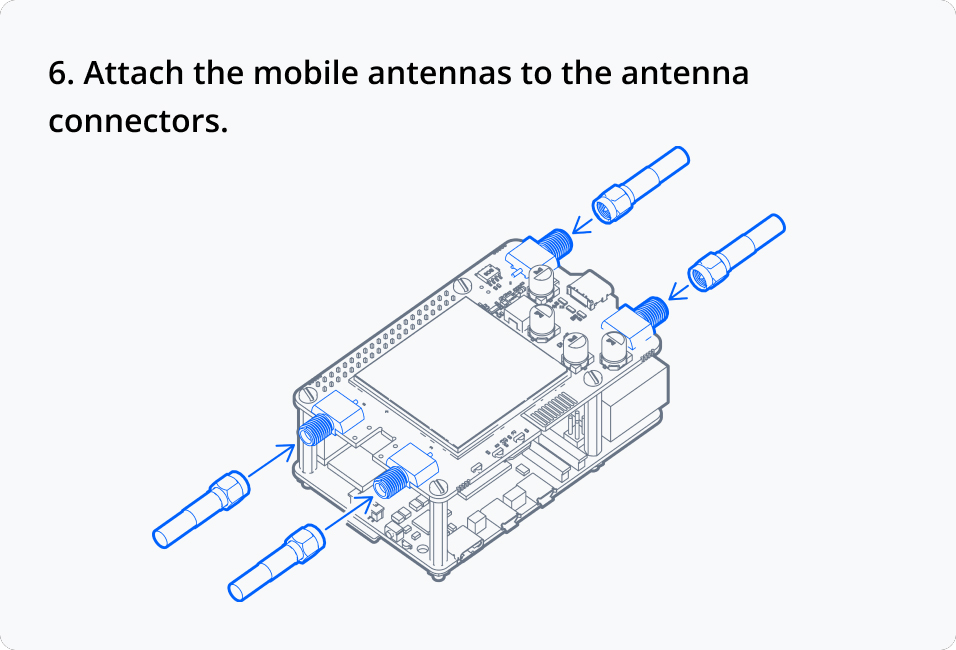

Hardware installation

Setting up Calyx with Raspberry Pi

Device Startup

Use only Raspberry Pi 4 or 5 for device setup you can find all steps in details on the official getting started with your Raspberry Pi guide.
Insert a microSD card with Raspberry Pi OS installed using Raspberry Pi Imager.
Connect the power supply, display, keyboard, and mouse or prepare for SSH access.
Boot the Raspberry Pi and complete the initial system setup, including language, Wi-Fi, and updates.
Power off the Raspberry Pi and prepare it for Calyx HAT+ installation.
Mount the Calyx on to your Raspberry Pi according to the Hardware installation instructions.
Power on the Raspberry Pi and proceed with steps below.

Calyx 4G / EBD021 and Calyx 5G / EBD050

The Calyx EBD021 normally exposes only an Ethernet interface (e.g., eth0) using RNDIS/ECM, not a GSM/WWAN modem. In this mode, it cannot be managed by ModemManager and provides no AT-command access.

If USB-serial drivers are loaded manually, the device creates TTY ports that allow AT-command control via tools like microcom. Regardless of driver configuration, all data connectivity is always delivered through the Ethernet interface, not a traditional USB modem interface.

Load necessary USB serial drivers

sudo modprobe usbserial
sudo modprobe option
echo "1d12 0101" | sudo tee /sys/bus/usb-serial/drivers/option1/new_id

Open modem terminal interface

sudo microcom -p /dev/ttyUSB2

Configure and test the modem using AT commands

AT+CPIN?                          ← Check SIM status

Response:
+CPIN: SIM PIN                    → SIM locked
+CPIN: READY                      → SIM unlocked
+CME ERROR: 10                    → Check SIM insertion / NET LED, then power cycle

AT+CPIN=0000                      ← Unlock SIM (replace 0000 with actual PIN)
AT+CPIN?                          ← Verify SIM unlocked (+CPIN: READY)

AT+CGDCONT?                       ← Check current APN

Response:
+CGDCONT: 1,"IPV4V6","","",0,0,0,0,0,0
+CGDCONT: 8,"IPV4V6","IMS","",0,0,0,1,0,1

AT+CGDCONT=1,"IP","internet.tele2.lt"  ← Set APN (replace with provider APN)

Response:
+CGDCONT: 1,"IP","internet.tele2.lt","",0,0,0,0,0,0
+CGDCONT: 8,"IPV4V6","IMS","",0,0,0,1,0,1

AT+CFUN=4                         ← Disable radio / restart module (wait for module to shut down)
AT+CFUN=1                         ← Enable radio / power on

AT+COPS=0                         ← Set automatic operator selection
AT+COPS?                          ← Verify operator connection

AT+CGACT?                         ← Check if 1st context is activated (should be +CGACT: 1,1)

Exit microcom with Ctrl + \\

Verify network interface appearance

ip link

Ensure usb0 interface is listed.

Test internet connectivity

ping 1.1.1.1 -I usb0

Calyx 5G Red Cap / EBD070

1. Disconnect modem

Before starting physically unplug the modem from the Raspberry Pi before installing the driver.

2. Install modem driver

Download File:EBD070-driver-1.0.zip.
Ensure the Raspberry Pi has an active internet connection.
Update package lists:

sudo apt-get update

Install driver package:

sudo apt-get install -y -f ./ebd070-driver-1.0.deb

Restart ModemManager:

sudo systemctl restart ModemManager

3. Reconnect modem

Reconnect the modem to the Raspberry Pi – ModemManager should now detect it and create /dev/ttyUSB interfaces.

4. Load and register USB serial drivers

If the modem is not detected automatically, load the drivers and register its USB IDs manually:

sudo modprobe usbserial
sudo modprobe option
echo "1d12 0101" | sudo tee /sys/bus/usb-serial/drivers/option/new_id

2. Open modem terminal interface

sudo microcom -p /dev/ttyUSB2

3. Configure and test the modem using AT commands

AT+CPIN?                          ← Check SIM status

Response:
+CPIN: SIM PIN                    → SIM locked
+CPIN: READY                      → SIM unlocked
+CME ERROR: 10                    → Check SIM insertion / NET LED, then power cycle

AT+CPIN=0000                      ← Unlock SIM (replace 0000 with actual PIN)
AT+CPIN?                          ← Verify SIM unlocked (+CPIN: READY)

AT+CGDCONT?                       ← Check current APN

Response:
+CGDCONT: 1,"IPV4V6","","",0,0,0,0,0,0
+CGDCONT: 8,"IPV4V6","IMS","",0,0,0,1,0,1

AT+CGDCONT=1,"IP","internet.tele2.lt"  ← Set APN (replace with provider APN)

Response:
+CGDCONT: 1,"IP","internet.tele2.lt","",0,0,0,0,0,0
+CGDCONT: 8,"IPV4V6","IMS","",0,0,0,1,0,1

AT+CFUN=4                         ← Disable radio / restart module (wait for module to shut down)
AT+CFUN=1                         ← Enable radio / power on

AT+COPS=0                         ← Set automatic operator selection
AT+COPS?                          ← Verify operator connection

AT+CGACT?                         ← Check if 1st context is activated (should be +CGACT: 1,1)

Exit microcom with Ctrl + \\

7. Verify network interface

ip link

Ensure usb0 interface is listed.

8. Test internet connectivity

ping 1.1.1.1 -I usb0

Compliance

Calyx 4G / EBD021, Calyx 5G / EBD050, Calyx 5G Red Cap / EBD070 Embedded Cellular Raspberry Pi HAT+ must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments.

Calyx 4G / EBD021

CE Declaration of Conformity

[BG] Bulgarian	С настоящето, TELTONIKA NETWORKS декларира, че Calyx 4G / EBD021 е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EU
[HR] Croatian	Ovim TELTONIKA NETWORKS izjavljuje da je ovaj Calyx 4G / EBD021 u skladu s bitnim zahtjevima i ostalim relevantnim odredbama Direktive 2014/53/EU
[CZ] Czech	TELTONIKA NETWORKS tímto prohlašuje, že Calyx 4G / EBD021 splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/EU
[DK] Danish	Undertegnede TELTONIKA NETWORKS erklærer herved, at følgende udstyr Calyx 4G / EBD021 overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EU
[NL] Dutch	Hierbij verklaart TELTONIKA NETWORKS dat het toestel I Calyx 4G / EBD021 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2014/53/EU
[EE] Estonian	Käesolevaga kinnitab TELTONIKA NETWORKS seadme Calyx 4G / EBD021 vastavust direktiivi 2014/53/EU põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele
[FI] Finish	TELTONIKA NETWORKS vakuuttaa täten että Calyx 4G / EBD021 tyyppinen laite on direktiivin 2014/53/EU oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen
[FR] French	TELTONIKA NETWORKS déclare que cette Calyx 4G / EBD021 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2014/53/EU
[DE] German	Hiermit erklärt TELTONIKA NETWORKS, dass dieser Calyx 4G / EBD021 den grundlegenden Anforderungen und anderen relevanten Bestimmungen der Richtlinie 2014/53/EU entspricht
[GR] Greek	ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ TELTONIKA NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ Calyx 4G / EBD021 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EU
[HU] Hungarian	A TELTONIKA NETWORKS ezzennel kijelenti, hogy a Calyx 4G / EBD021 típusú berendezés teljesíti az alapvető követelményeket és más 2014/53/EU irányelvben meghatározott vonatkozó rendelkezéseket
[IE] Irish	Leis seo, dearbhaíonn TELTONIKA NETWORKS go gcomhlíonann an Calyx 4G / EBD021 seo bunriachtanais agus forálacha ábhartha eile Threoir 2014/53/EU
[IT] Italian	Con la presente, TELTONIKA NETWORKS dichiara che questo Calyx 4G / EBD021 è conforme ai requisiti essenziali e ad altre disposizioni pertinenti della Direttiva 2014/53/EU
[LV] Latvian	Ar šo TELTONIKA NETWORKS deklarē, ka Calyx 4G / EBD021 atbilst Direktīvas 2014/53/EU būtiskajām prasībām un citiem ar to saistītajiem noteikumiem
[LT] Lithuanian	Šiuo dokumentu UAB TELTONIKA NETWORKS deklaruoja, kad šis Calyx 4G / EBD021 atitinka esminius reikalavimus ir kitas 2014/53/EU Direktyvos nuostatas
[MT] Maltese	Hawnhekk, TELTONIKA NETWORKS tiddikjara li dan l-Calyx 4G / EBD021 huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħra tad Direttiva 2014/53/EU
[NO] Norwegian	TELTONIKA NETWORKS Erklærer herved at Calyx 4G / EBD021 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU
[PL] Polish	Niniejszym TELTONIKA NETWORKS deklaruje że Calyx 4G / EBD021 jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EU
[PT] Portuguese	Eu, TELTONIKA NETWORKS declaro que o Calyx 4G / EBD021 cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EU
[RO] Romanian	Prin prezenta, TELTONIKA NETWORKS declară că aparatul Calyx 4G / EBD021 este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/EU
[SK] Slovak	Spoločnosť TELTONIKA NETWORKS týmto vyhlasuje, že smerovač Calyx 4G / EBD021 je v súlade so základnými požiadavkami a ďalšími príslušnými ustanoveniami smernice 2014/53/EU
[SI] Slovenian	TELTONIKA NETWORKS izjavlja, da je ta Calyx 4G / EBD021 v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/EU
[ES] Spanish	Por la presente, TELTONIKA NETWORKS declara que este Calyx 4G / EBD021 cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EU
[SE] Swedish	Härmed intygar TELTONIKA NETWORKS att denna Calyx 4G / EBD021 är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU

Markings

Detailed compliance information is available at the following internet address: wiki.teltonika-networks.com/view/Certificates.

	This sign means that is necessary to read the User's Manual before you start using the device.
	This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.
	Hereby, TELTONIKA NETWORKS declares that this Calyx is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/Calyx_CE/RED
	Hereby, TELTONIKA NETWORKS declares that this Calyx is in compliance with Radio Equipment Regulations 2017, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UK Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/Calyx_UKCA

RF exposure

This device meets the official requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by authorized agencies. The device must be used with a minimum separation of 20 cm from a person’s body to ensure compliance with RF exposure guidelines. Failure to observe these instructions could result in your RF exposure exceeding the applicable limits.

External antennas used with Calyx 4G / EBD021 must be installed to provide a distance of at least 20 cm from any people and must not be co-located or operated in conjunction with any other antenna or transmitter.

Any external antenna gain must meet RF exposure and maximum radiated output power limits of the applicable rule section.

Calyx 5G / EBD050

CE Declaration of Conformity

[BG] Bulgarian	С настоящето, TELTONIKA NETWORKS декларира, че Calyx 5G / EBD050 е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EU
[HR] Croatian	Ovim TELTONIKA NETWORKS izjavljuje da je ovaj Calyx 5G / EBD050 u skladu s bitnim zahtjevima i ostalim relevantnim odredbama Direktive 2014/53/EU
[CZ] Czech	TELTONIKA NETWORKS tímto prohlašuje, že Calyx 5G / EBD050 splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/EU
[DK] Danish	Undertegnede TELTONIKA NETWORKS erklærer herved, at følgende udstyr Calyx 5G / EBD050 overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EU
[NL] Dutch	Hierbij verklaart TELTONIKA NETWORKS dat het toestel I Calyx 5G / EBD050 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2014/53/EU
[EE] Estonian	Käesolevaga kinnitab TELTONIKA NETWORKS seadme Calyx 5G / EBD050 vastavust direktiivi 2014/53/EU põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele
[FI] Finish	TELTONIKA NETWORKS vakuuttaa täten että Calyx 5G / EBD050 tyyppinen laite on direktiivin 2014/53/EU oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen
[FR] French	TELTONIKA NETWORKS déclare que cette Calyx 5G / EBD050 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2014/53/EU
[DE] German	Hiermit erklärt TELTONIKA NETWORKS, dass dieser Calyx 5G / EBD050 den grundlegenden Anforderungen und anderen relevanten Bestimmungen der Richtlinie 2014/53/EU entspricht
[GR] Greek	ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ TELTONIKA NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ Calyx 5G / EBD050 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EU
[HU] Hungarian	A TELTONIKA NETWORKS ezzennel kijelenti, hogy a Calyx 5G / EBD050 típusú berendezés teljesíti az alapvető követelményeket és más 2014/53/EU irányelvben meghatározott vonatkozó rendelkezéseket
[IE] Irish	Leis seo, dearbhaíonn TELTONIKA NETWORKS go gcomhlíonann an Calyx 5G / EBD050 seo bunriachtanais agus forálacha ábhartha eile Threoir 2014/53/EU
[IT] Italian	Con la presente, TELTONIKA NETWORKS dichiara che questo Calyx 5G / EBD050 è conforme ai requisiti essenziali e ad altre disposizioni pertinenti della Direttiva 2014/53/EU
[LV] Latvian	Ar šo TELTONIKA NETWORKS deklarē, ka Calyx 5G / EBD050 atbilst Direktīvas 2014/53/EU būtiskajām prasībām un citiem ar to saistītajiem noteikumiem
[LT] Lithuanian	Šiuo dokumentu UAB TELTONIKA NETWORKS deklaruoja, kad šis Calyx 5G / EBD050 atitinka esminius reikalavimus ir kitas 2014/53/EU Direktyvos nuostatas
[MT] Maltese	Hawnhekk, TELTONIKA NETWORKS tiddikjara li dan l-Calyx 5G / EBD050 huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħra tad Direttiva 2014/53/EU
[NO] Norwegian	TELTONIKA NETWORKS Erklærer herved at Calyx 5G / EBD050 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU
[PL] Polish	Niniejszym TELTONIKA NETWORKS deklaruje że Calyx 5G / EBD050 jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EU
[PT] Portuguese	Eu, TELTONIKA NETWORKS declaro que o Calyx 5G / EBD050 cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EU
[RO] Romanian	Prin prezenta, TELTONIKA NETWORKS declară că aparatul Calyx 5G / EBD050 este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/EU
[SK] Slovak	Spoločnosť TELTONIKA NETWORKS týmto vyhlasuje, že smerovač Calyx 5G / EBD050 je v súlade so základnými požiadavkami a ďalšími príslušnými ustanoveniami smernice 2014/53/EU
[SI] Slovenian	TELTONIKA NETWORKS izjavlja, da je ta Calyx 5G / EBD050 v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/EU
[ES] Spanish	Por la presente, TELTONIKA NETWORKS declara que este Calyx 5G / EBD050 cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EU
[SE] Swedish	Härmed intygar TELTONIKA NETWORKS att denna Calyx 5G / EBD050 är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU

Markings

Detailed compliance information is available at the following internet address: wiki.teltonika-networks.com/view/Certificates.

	This sign means that is necessary to read the User's Manual before you start using the device.
	This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.
	Hereby, TELTONIKA NETWORKS declares that this Calyx is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/Calyx_CE/RED
	Hereby, TELTONIKA NETWORKS declares that this Calyx is in compliance with Radio Equipment Regulations 2017, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UK Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/Calyx_UKCA

RF exposure

This device meets the official requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by authorized agencies. The device must be used with a minimum separation of 20 cm from a person’s body to ensure compliance with RF exposure guidelines. Failure to observe these instructions could result in your RF exposure exceeding the applicable limits.

External antennas used with Calyx 5G / EBD050 must be installed to provide a distance of at least 20 cm from any people and must not be co-located or operated in conjunction with any other antenna or transmitter.

Any external antenna gain must meet RF exposure and maximum radiated output power limits of the applicable rule section.

Calyx 5G Red Cap / EBD070

CE Declaration of Conformity

[BG] Bulgarian	С настоящето, TELTONIKA NETWORKS декларира, че Calyx 4G / EBD021 е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EU
[HR] Croatian	Ovim TELTONIKA NETWORKS izjavljuje da je ovaj Calyx 4G / EBD021 u skladu s bitnim zahtjevima i ostalim relevantnim odredbama Direktive 2014/53/EU
[CZ] Czech	TELTONIKA NETWORKS tímto prohlašuje, že Calyx 4G / EBD021 splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/EU
[DK] Danish	Undertegnede TELTONIKA NETWORKS erklærer herved, at følgende udstyr Calyx 4G / EBD021 overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EU
[NL] Dutch	Hierbij verklaart TELTONIKA NETWORKS dat het toestel I Calyx 4G / EBD021 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2014/53/EU
[EE] Estonian	Käesolevaga kinnitab TELTONIKA NETWORKS seadme Calyx 4G / EBD021 vastavust direktiivi 2014/53/EU põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele
[FI] Finish	TELTONIKA NETWORKS vakuuttaa täten että Calyx 4G / EBD021 tyyppinen laite on direktiivin 2014/53/EU oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen
[FR] French	TELTONIKA NETWORKS déclare que cette Calyx 4G / EBD021 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2014/53/EU
[DE] German	Hiermit erklärt TELTONIKA NETWORKS, dass dieser Calyx 4G / EBD021 den grundlegenden Anforderungen und anderen relevanten Bestimmungen der Richtlinie 2014/53/EU entspricht
[GR] Greek	ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ TELTONIKA NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ Calyx 4G / EBD021 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EU
[HU] Hungarian	A TELTONIKA NETWORKS ezzennel kijelenti, hogy a Calyx 4G / EBD021 típusú berendezés teljesíti az alapvető követelményeket és más 2014/53/EU irányelvben meghatározott vonatkozó rendelkezéseket
[IE] Irish	Leis seo, dearbhaíonn TELTONIKA NETWORKS go gcomhlíonann an Calyx 4G / EBD021 seo bunriachtanais agus forálacha ábhartha eile Threoir 2014/53/EU
[IT] Italian	Con la presente, TELTONIKA NETWORKS dichiara che questo Calyx 4G / EBD021 è conforme ai requisiti essenziali e ad altre disposizioni pertinenti della Direttiva 2014/53/EU
[LV] Latvian	Ar šo TELTONIKA NETWORKS deklarē, ka Calyx 4G / EBD021 atbilst Direktīvas 2014/53/EU būtiskajām prasībām un citiem ar to saistītajiem noteikumiem
[LT] Lithuanian	Šiuo dokumentu UAB TELTONIKA NETWORKS deklaruoja, kad šis Calyx 4G / EBD021 atitinka esminius reikalavimus ir kitas 2014/53/EU Direktyvos nuostatas
[MT] Maltese	Hawnhekk, TELTONIKA NETWORKS tiddikjara li dan l-Calyx 4G / EBD021 huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħra tad Direttiva 2014/53/EU
[NO] Norwegian	TELTONIKA NETWORKS Erklærer herved at Calyx 4G / EBD021 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU
[PL] Polish	Niniejszym TELTONIKA NETWORKS deklaruje że Calyx 4G / EBD021 jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EU
[PT] Portuguese	Eu, TELTONIKA NETWORKS declaro que o Calyx 4G / EBD021 cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EU
[RO] Romanian	Prin prezenta, TELTONIKA NETWORKS declară că aparatul Calyx 4G / EBD021 este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/EU
[SK] Slovak	Spoločnosť TELTONIKA NETWORKS týmto vyhlasuje, že smerovač Calyx 4G / EBD021 je v súlade so základnými požiadavkami a ďalšími príslušnými ustanoveniami smernice 2014/53/EU
[SI] Slovenian	TELTONIKA NETWORKS izjavlja, da je ta Calyx 4G / EBD021 v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/EU
[ES] Spanish	Por la presente, TELTONIKA NETWORKS declara que este Calyx 4G / EBD021 cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EU
[SE] Swedish	Härmed intygar TELTONIKA NETWORKS att denna Calyx 4G / EBD021 är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU

FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

ISED Canada

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions:

This device may not cause interference;
This device must accept any interference, including interference that may cause undesired operation of the device.

L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

L'appareil ne doit pas produire de brouillage;
L'appareil doit accepter tout brouillage radioélectrique subi, mzme si le brouillage est.

Markings

Detailed compliance information is available at the following internet address: wiki.teltonika-networks.com/view/Certificates.

	This sign means that is necessary to read the User's Manual before you start using the device.
	This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.
	Hereby, TELTONIKA NETWORKS declares that this Calyx is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/Calyx_CE/RED
	Hereby, TELTONIKA NETWORKS declares that this Calyx is in compliance with Radio Equipment Regulations 2017, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UK Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/Calyx_UKCA

RF exposure

This device meets the official requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by authorized agencies. The device must be used with a minimum separation of 20 cm from a person’s body to ensure compliance with RF exposure guidelines. Failure to observe these instructions could result in your RF exposure exceeding the applicable limits.

External antennas used with Calyx 5G Red Cap / EBD070 must be installed to provide a distance of at least 20 cm from any people and must not be co-located or operated in conjunction with any other antenna or transmitter.

Any external antenna gain must meet RF exposure and maximum radiated output power limits of the applicable rule section.

FCC Radiation Exposure Statement:

This device complies with the relevant FCC RF radiation exposure limit set forth for an uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter and must be installed to provide a separation distance of at least 20 cm from all persons.

ISED Canada Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

Product Safety and Use

Calyx 4G / EBD021; Calyx 5G Red Cap / EBD070; Calyx 5G / EBD050

Operating conditions

Operating temperature: -40° to +75° Celsius
Humidity should be in the range of 10% to 90% (non-condensing). Only use the device in dry environments.
Out of direct sunlight
Away from heat source, corrosive substances, salts, and flammable gases

Attention: operation outside the permissible range can considerably shorten the service life of the device.

Faulty and damaged products

Do not attempt to disassemble the device or its accessories.
Only qualified personnel must service or repair the device or its accessories.
If your device or its accessories have been submerged in water punctured or subjected to a severe fall, do not use until they have been checked at an authorized service center.

Electrical safety

Only use approved accessories.
Do not connect with incompatible products or accessories.
It is recommended to ground devices with grounding terminals before connecting them to power. Failure to ground appropriately might result in a shock hazard. The cross-sectional area of the protective grounding conductor should be at least 1mm2.

Product handling

You alone are responsible for how you use your device and any consequences related to its use.
Use of your device is subject to safety measures designed to protect users and their environment.
Always treat your device and its accessories with care and keep it in a clean and dust-free place.
Do not expose your device or its accessories to open flames, lit tobacco products, liquid, moisture, or high humidity.
Do not drop, throw or try to bend your device or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.
Do not paint your device or its accessories.
Do not attempt to disassemble your device or its accessories: it does not contain any user-serviceable parts. For safety reasons, the equipment should be opened only by qualified personnel.
Make sure to use ESD personal protective equipment while the equipment is serviced.
Do not use your device in an enclosed environment where heat dissipation is poor.
Prolonged use in such space may cause excessive heat and raise ambient temperature, which will lead to the automatic shutdown of your device for your safety. To use your device again after such a shutdown, cool it in a well-ventilated place before turning it on.
Please check all national laws and local regulations for the disposal of electronic products.
Do not operate the device where ventilation is restricted.
Do not use or install this product near water to avoid fire or shock hazards.
Avoid exposing the equipment to rain or damp areas.
Arrange power and Ethernet cables so that they are not likely to be stepped on or have items placed on them.
Ensure that the voltage and the rated current of the power source match the device’s requirements. Do not connect the device to an inappropriate power source.
During a thunderstorm, no operations should be carried out on the device and cables.
The unit must be powered off where blasting is in progress and explosive atmospheres are present or near medical life support equipment.
Do not leave your device and its accessories within reach of small children or allow them to play with it. They could hurt themselves or others and could accidentally damage the device. Your device contains small parts with sharp edges that may cause an injury choking hazard.
Like any wireless device, this device operates using radio signals, which cannot guarantee connection in all conditions. Therefore, you must never rely solely on any wireless device for emergency communications or otherwise use the device in situations where the interruption of data connectivity could lead to death, personal injury, property damage, data, or other loss.
The device may become warm during regular use.
