This Wiki page contains the online version of the Quick Start Guide (QSG) for the TRM142 Modem. Here, you will find an overview of the various physical interfaces of a TRM142, hardware installation instructions, first login information, device specifications, conformity, and general safety information. It is highly recommended that you acquaint yourself with the Quick Start Guide before using the device. You can also locate a printed short version of the Quick Start Guide in your device's packaging box.
Safety information
Before starting operating the device, please review recommendations and precautions to minimize the possibility of accidents. Safety precautions presented are supplementary and subject to the local safety regulations. When various operations are executed on the device, the user must fully follow the safety instructions and recommendations provided with the device.
General
Radio specifications
RF technologies
2G, 3G, 4G
Max RF power
33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE
Bundled accessories specifications*
Mobile antenna
699~868 / 1850~2690 MHz, 50 Ω, VSWR<3, gain** 1 dBi, omnidirectional, SMA male connector
* Order code dependant.
** Higher gain antenna can be connected to compensate for cable attenuation when a cable is used. The user is responsible for the compliance with the legal regulations.
Quick Start Guide

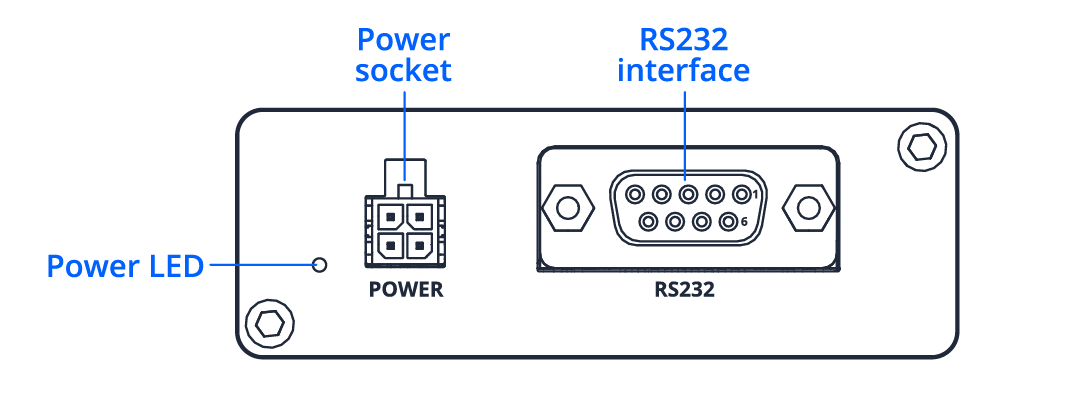

Front view

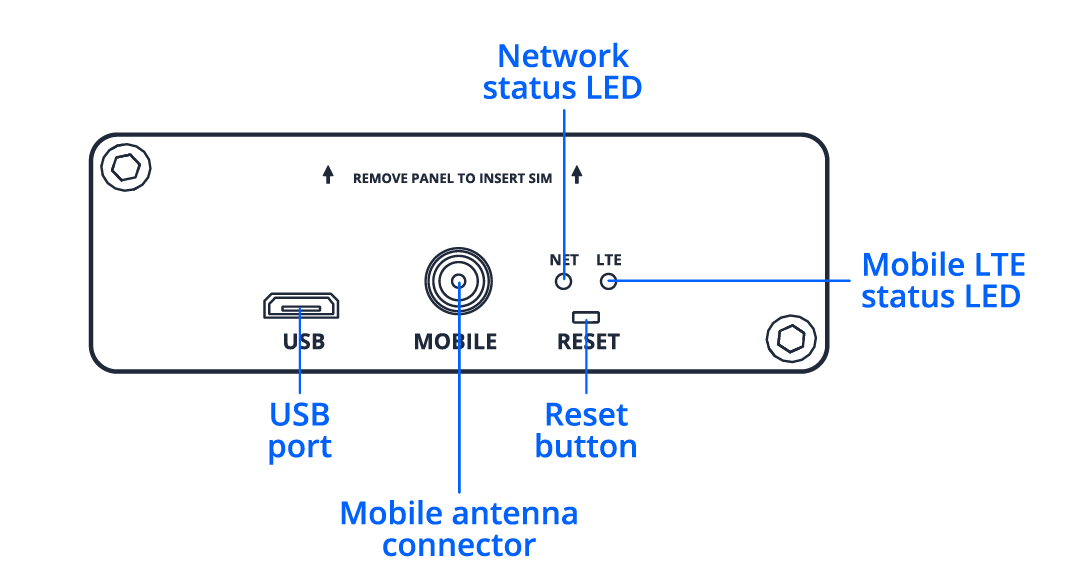

Back View
Connectors

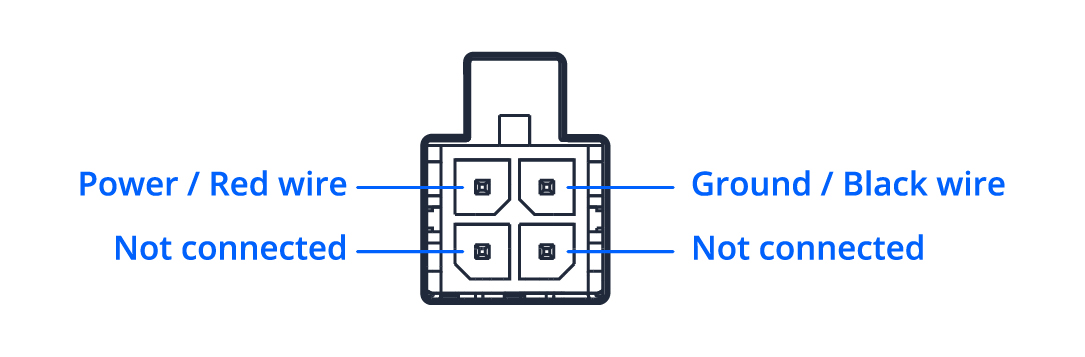

POWER SOCKET PINOUT

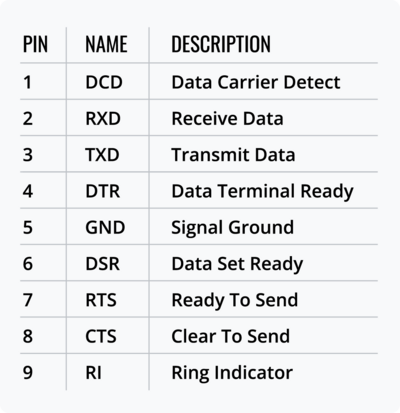

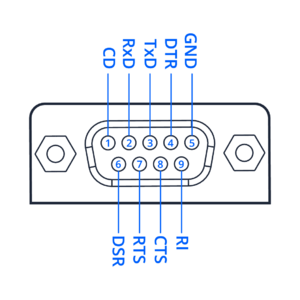

RS232 CONNECTOR

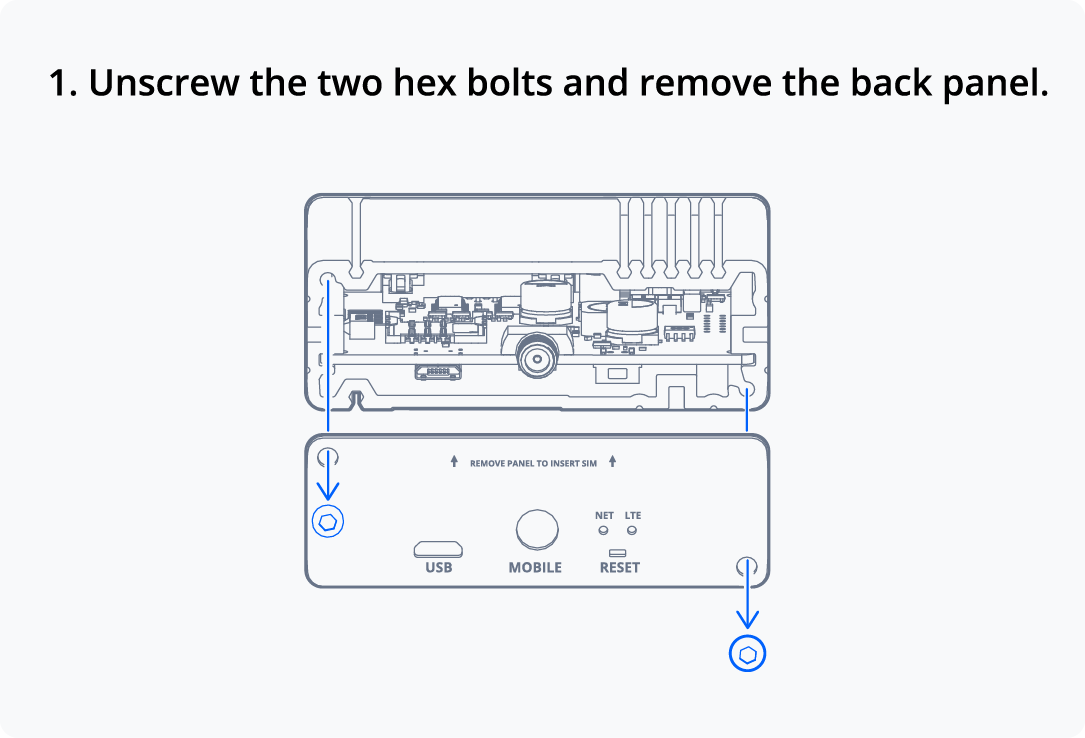

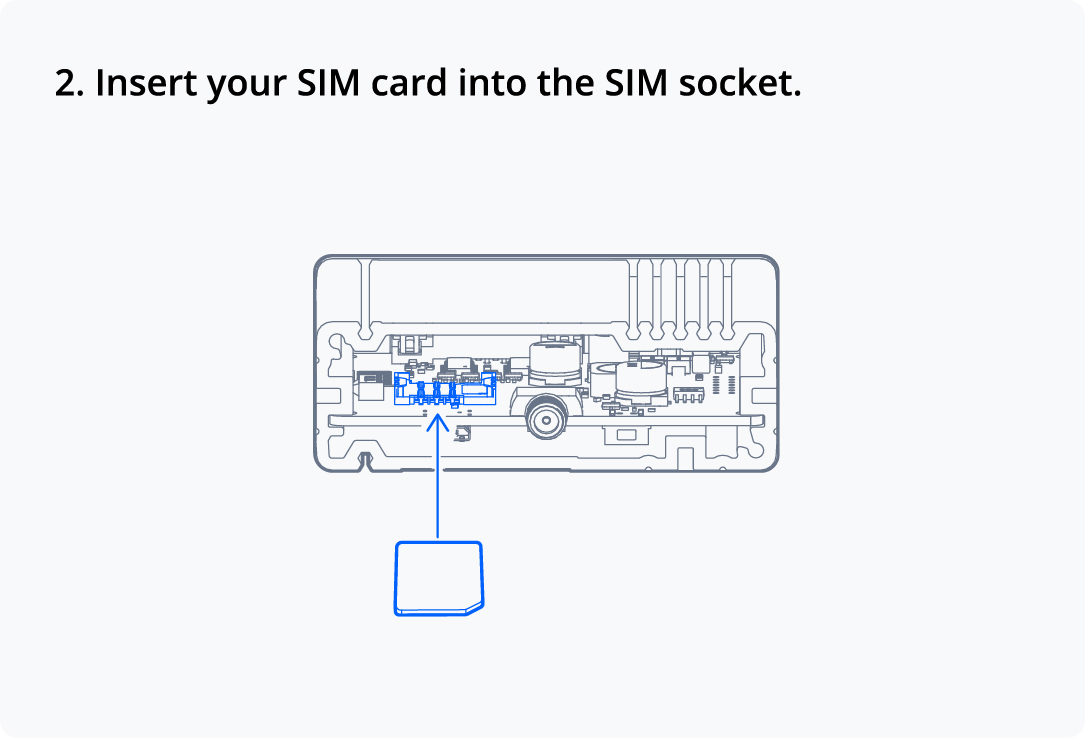

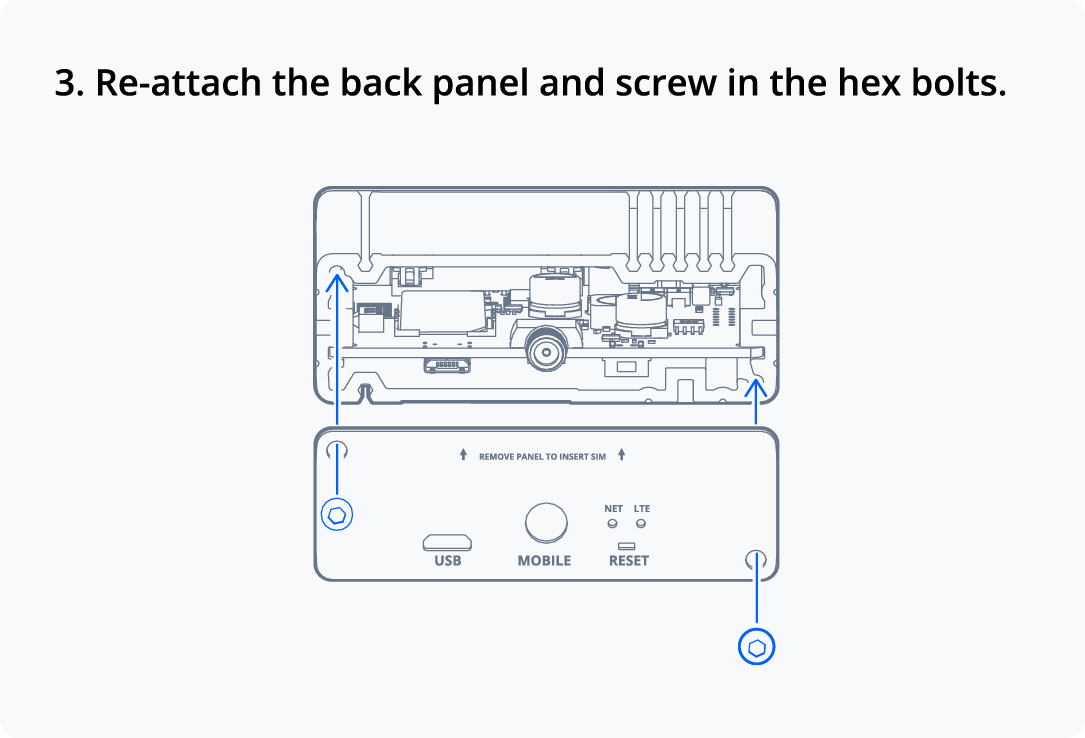

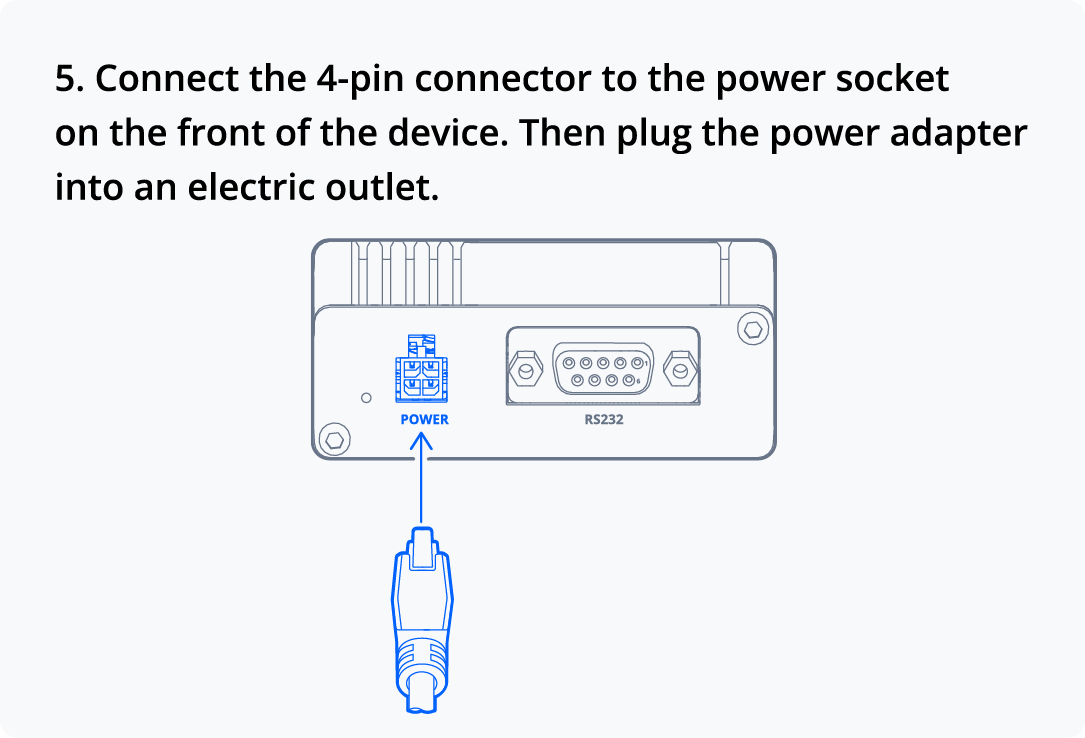

Hardware installation
Instructions to install drivers
Watch the instructional GIF below to learn how to install TRM drivers.
Enable Internet Connection
In network connection window automatically creates a cellular network.
Click on the Windows start button.
Go to Network & Internet settings.
Activate the mobile data by clicking on the Mobile button.
Add APN
If you need to enter APN settings:
Right-click on Mobile.
Go to Mobile -> Advance options.
Add a new APN in APN settings by clicking on the "Add an APN" button.
Enter the required information and save.
Testing Mobile connection
Testing mobile internet connection:
Open the Command Prompt.
After typing ping 8.8.8.8 there should be an answer.
SIM card recommendations
Before installing the SIM cards, please apply a thin layer of dielectric grease to the SIM card contacts for devices used in environments with high-vibration levels. This will help avoid SIM cards losing touch with the SIM slot and prevent unexpected failures.
Industrial Grade SIM cards are recommended for devices requiring a long lifespan used in environments with extreme temperatures, corrosive or extra humid climates, or hard-to-reach locations.
Compliance
TRM142 Modem must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments.
CE Declaration of Conformity
[BG] Bulgarian
С настоящето, TELTONIKA NETWORKS декларира, че TRM142 е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EU
[HR] Croatian
Ovim TELTONIKA NETWORKS izjavljuje da je ovaj TRM142 u skladu s bitnim zahtjevima i ostalim relevantnim odredbama Direktive 2014/53/EU
[CZ] Czech
TELTONIKA NETWORKS tímto prohlašuje, že TRM142 splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/EU
[DK] Danish
Undertegnede TELTONIKA NETWORKS erklærer herved, at følgende udstyr TRM142 overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EU
[NL] Dutch
Hierbij verklaart TELTONIKA NETWORKS dat het toestel I TRM142 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2014/53/EU
[EE] Estonian
Käesolevaga kinnitab TELTONIKA NETWORKS seadme TRM142 vastavust direktiivi 2014/53/EU põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele
[FI] Finish
TELTONIKA NETWORKS vakuuttaa täten että TRM142 tyyppinen laite on direktiivin 2014/53/EU oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen
[FR] French
TELTONIKA NETWORKS déclare que cette TRM142 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2014/53/EU
[DE] German
Hiermit erklärt TELTONIKA NETWORKS, dass dieser TRM142 den grundlegenden Anforderungen und anderen relevanten Bestimmungen der Richtlinie 2014/53/EU entspricht
[GR] Greek
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ TELTONIKA NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ TRM142 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EU
[HU] Hungarian
A TELTONIKA NETWORKS ezzennel kijelenti, hogy a TRM142 típusú berendezés teljesíti az alapvető követelményeket és más 2014/53/EU irányelvben meghatározott vonatkozó rendelkezéseket
[IE] Irish
Leis seo, dearbhaíonn TELTONIKA NETWORKS go gcomhlíonann an TRM142 seo bunriachtanais agus forálacha ábhartha eile Threoir 2014/53/EU
[IT] Italian
Con la presente, TELTONIKA NETWORKS dichiara che questo TRM142 è conforme ai requisiti essenziali e ad altre disposizioni pertinenti della Direttiva 2014/53/EU
[LV] Latvian
Ar šo TELTONIKA NETWORKS deklarē, ka TRM142 atbilst Direktīvas 2014/53/EU būtiskajām prasībām un citiem ar to saistītajiem noteikumiem
[LT] Lithuanian
Šiuo dokumentu UAB TELTONIKA NETWORKS deklaruoja, kad šis TRM142 atitinka esminius reikalavimus ir kitas 2014/53/EU Direktyvos nuostatas
[MT] Maltese
Hawnhekk, TELTONIKA NETWORKS tiddikjara li dan l-TRM142 huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħra tad Direttiva 2014/53/EU
[NO] Norwegian
TELTONIKA NETWORKS Erklærer herved at TRM142 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU
[PL] Polish
Niniejszym TELTONIKA NETWORKS deklaruje że TRM142 jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EU
[PT] Portuguese
Eu, TELTONIKA NETWORKS declaro que o TRM142 cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EU
[RO] Romanian
Prin prezenta, TELTONIKA NETWORKS declară că aparatul TRM142 este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/EU
[SK] Slovak
Spoločnosť TELTONIKA NETWORKS týmto vyhlasuje, že smerovač TRM142 je v súlade so základnými požiadavkami a ďalšími príslušnými ustanoveniami smernice 2014/53/EU
[SI] Slovenian
TELTONIKA NETWORKS izjavlja, da je ta TRM142 v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/EU
[ES] Spanish
Por la presente, TELTONIKA NETWORKS declara que este TRM142 cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EU
[SE] Swedish
Härmed intygar TELTONIKA NETWORKS att denna TRM142 är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU
RF exposure
This device meets the official requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by authorized agencies. The device must be used with a minimum separation of 20 cm from a person’s body to ensure compliance with RF exposure guidelines. Failure to observe these instructions could result in your RF exposure exceeding the applicable limits.
External antennas used with TRM142 must be installed to provide a distance of at least 20 cm from any people and must not be co-located or operated in conjunction with any other antenna or transmitter.
Any external antenna gain must meet RF exposure and maximum radiated output power limits of the applicable rule section.
This sign means that is necessary to read the User's Manual before you start using the device.
This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.
Hereby, TELTONIKA NETWORKS declares that this TRM142 is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU, 2011/65/ЕU, 2009/125/EC. The full text of the EU Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/TRM142.
Hereby, TELTONIKA NETWORKS declares that this TRM142 is in compliance with Electrical Equipment (Safety) Regulations 2016, EMC Regulations 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012, The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019. The full text of the UK Declaration of Conformity is available at the following internet address: https://wiki.teltonika-networks.com/view/TRM142.
Product Safety and Use
Operating conditions
Operating temperature: -40° to +40° Celsius
Humidity should be in the range of 10% to 90% (non-condensing). Only use the device in dry environments.
Out of direct sunlight
Away from heat source, corrosive substances, salts, and flammable gases
Attention: operation outside the permissible range can considerably shorten the service life of the device.
Faulty and damaged products
Do not attempt to disassemble the device or its accessories.
Only qualified personnel must service or repair the device or its accessories.
If your device or its accessories have been submerged in water punctured or subjected to a severe fall, do not use until they have been checked at an authorized service center.
Electrical safety
Only use approved accessories.
Do not connect with incompatible products or accessories.
It is recommended to ground devices with grounding terminals before connecting them to power. Failure to ground appropriately might result in a shock hazard. The cross-sectional area of the protective grounding conductor should be at least 1mm2.
Product handling
You alone are responsible for how you use your device and any consequences related to its use.
Use of your device is subject to safety measures designed to protect users and their environment.
Always treat your device and its accessories with care and keep it in a clean and dust-free place.
Do not expose your device or its accessories to open flames, lit tobacco products, liquid, moisture, or high humidity.
Do not drop, throw or try to bend your device or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.
Do not paint your device or its accessories.
Do not attempt to disassemble your device or its accessories: it does not contain any user-serviceable parts. For safety reasons, the equipment should be opened only by qualified personnel.
Make sure to use ESD personal protective equipment while the equipment is serviced.
Do not use your device in an enclosed environment where heat dissipation is poor.
Prolonged use in such space may cause excessive heat and raise ambient temperature, which will lead to the automatic shutdown of your device for your safety. To use your device again after such a shutdown, cool it in a well-ventilated place before turning it on.
Please check all national laws and local regulations for the disposal of electronic products.
Do not operate the device where ventilation is restricted.
Do not use or install this product near water to avoid fire or shock hazards.
Avoid exposing the equipment to rain or damp areas.
Arrange power and Ethernet cables so that they are not likely to be stepped on or have items placed on them.
Ensure that the voltage and the rated current of the power source match the device’s requirements. Do not connect the device to an inappropriate power source.
During a thunderstorm, no operations should be carried out on the device and cables.
The unit must be powered off where blasting is in progress and explosive atmospheres are present or near medical life support equipment.
Do not leave your device and its accessories within reach of small children or allow them to play with it. They could hurt themselves or others and could accidentally damage the device. Your device contains small parts with sharp edges that may cause an injury choking hazard.
Like any wireless device, this device operates using radio signals, which cannot guarantee connection in all conditions. Therefore, you must never rely solely on any wireless device for emergency communications or otherwise use the device in situations where the interruption of data connectivity could lead to death, personal injury, property damage, data, or other loss.
