TSW100 First Start

From Teltonika Networks Wiki
(Redirected from QSG TSW100)

This Wiki page contains the online version of the Quick Start Guide (QSG) for the TSW100 Switch. Here you will find an overview of the various components found on the front and back sides of a TSW100 switch, basic hardware installation, device specifications and general safety information. It is highly recommended that you acquaint yourself with with the Quick Start Guide before using the device. If you own a TSW100 switch, you can also find a printed version of the Quick Start Guide in the device's package.

Tsw100 for box demo v1.png

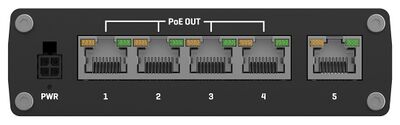

Front view

No. Description
Networking tsw100 manual panels front v2.png
1 4 pin power socket
3 Power LED
4 PoE powered Ethernet port
5 Ethernet port

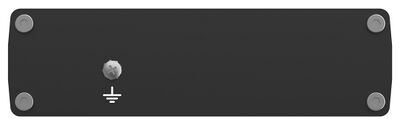

Back view

No. Description
Networking tsw100 manual panels back v2.png
1 Grounding screw


4 pin power socket

No. Description Wire color
Trb142 power socket pinout v3.png
1 Power Red
2 Ground Black
3 Not connected -
4 Not connected -

Ethernet port

No. Action Describtion
Networking tsw100 manual ethernet port LED v2.png
1 Orange LED lit 10/100 Mbps link established
2 Orange LED blinking Active link connection
3 Green LED lit 1000 Mbps link established

Safety information

TSW100 switch must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments.

Technical specifications
Input voltage range* 7 - 57 VDC
Max power consumption <9 W
Max PoE power budget at PSE** 120 W
Bundled accessories specifications***
Power adapter Input: 1.8 A @ 100-240 VAC, Output: 48 VDC, 1.3 A, 4-pin plug

* PoE operates properly only when connected power supply outputs 44 V or higher voltage.

** Default Teltonika provided power supply only allows 60 W PoE power budget at PSE, to reach maximum 120 W at PSE, a >130 W power supply must be used.

*** Order code dependant.

Qsg rut950 manual.PNGThis sign on the package means that is necessary to read the User's Manual before you start using the device

Qsg rut950 recycle.PNGThis sign on the package means that all used electronic and electric equipment should not be mixed with general household waste
