RUTC41 Docker

The information in this page is updated in accordance with firmware version RUTC_R_00.07.18.3.

Summary

Docker is a platform designed to make it easier to create, deploy, and run applications by using containers. Containers allow a developer to package up an application with all of the parts it needs-such as libraries and other dependencies-and ship it all out as one package. The RutOS Docker UI Manager simplifies the management of Docker images and containers.

Note: Docker is additional software that can be installed from the System → Package Manager page.

Containers

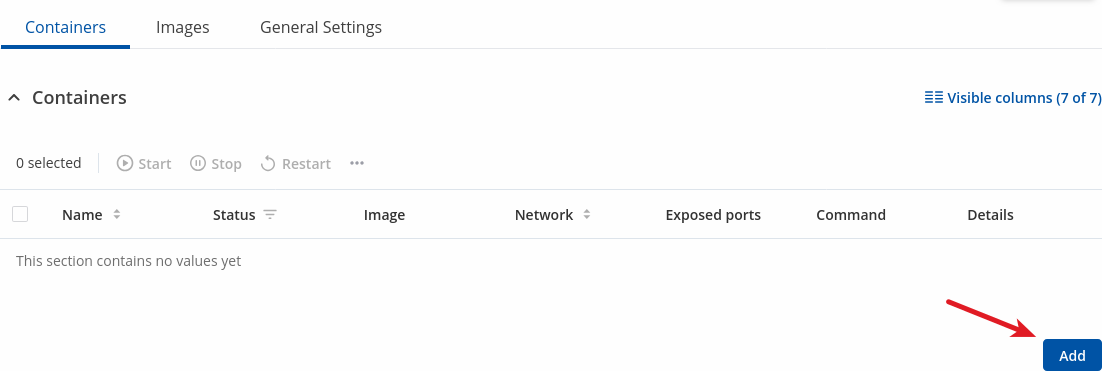

The Containers tab is for creating and managing containers.

To create a new container press `Add` button.

Field	Value	Description
Name	string; default: none	Name of the container
Image	list; default: none	The name (or reference) of the image to use when creating the container, or which was used when the container was created.
Add docker image	-(interactive button)	Redirects to Images tab.
Interactive	off | on; default: off	Keep STDIN open even if not attached.
Use TTY	off | on; default: off	Attach standard streams to a TTY, including STDIN if it is not closed.
Privileged	off | on; default: off	Whether the container should run in privileged mode.
Restart policy	Never | Always | Unless stopped | On failure; default: Never	An ever increasing delay (double the previous delay, starting at 100ms) is added before each restart to prevent server flooding. By default, the server does not restart.
Network mode	Bridge | Host | None; default: Bridge	Sets the networking mode for the run commands during build.
Environment variables	string; default: none	A list of environment variables to set inside the container.
Exposed ports	integer [1..65535] and protocol: TCP | UDP | SCTP	Port bindings for the container in the format: host_port:container_port/protocol (e.g., 8080:80/tcp).
Command	string; default: none	Command used to start the container.

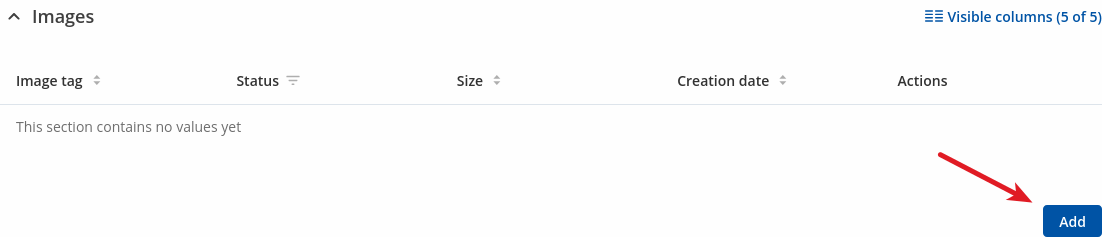

Images

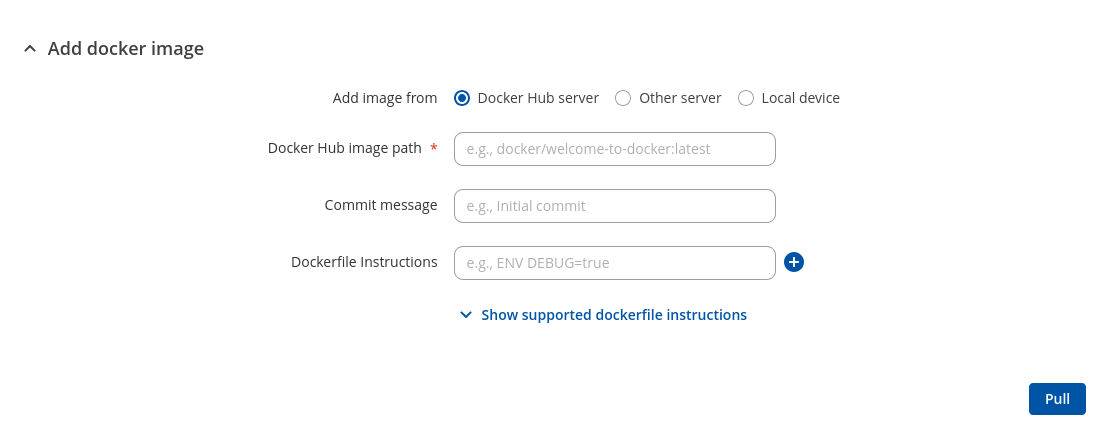

The Images tab is for managing, pulling or uploading the images.

To create a new image press `Add` button.

Field	Value	Description
Add image from	Docker Hub server | Other server | Local device; default: Docker Hub server	Select the source from which to add the image.
Docker Hub image path	string; default: none	Name of the image to pull. The name may include a tag or digest. This parameter may only be used when pulling an image. The pull is cancelled if the HTTP connection is closed.
Server image path	url; default: none	Source to import. The value may be a URL from which the image can be retrieved or use '-' to read the image from the request body.
Server repository	url; default: none	Repository name given to an image when it is imported. The repo may include a tag.
Commit message	string; default: none	Set commit message for imported image.
Dockerfile Instructions	string; default: none	Apply dockerfile instructions to the image that is created (e.g., ENV DEBUG=true).
Image file	-(interactive button)	Select the image file to upload.

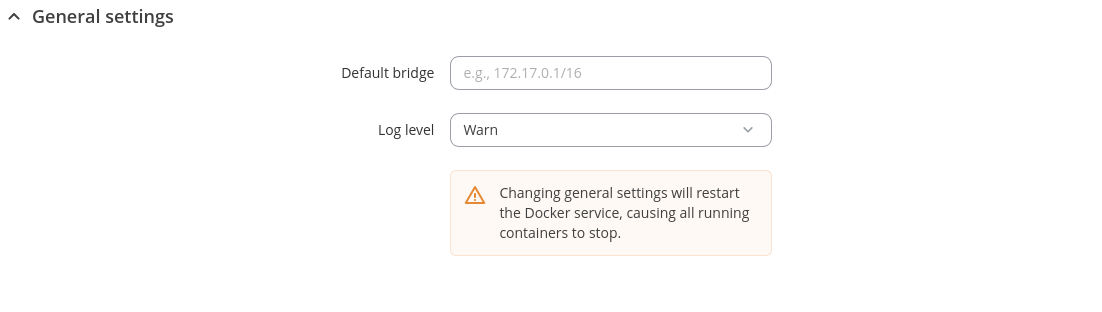

General Settings

The General Settings tab:

Field	Value	Description
Default bridge	ipv4; default: none	Specify the default bridge IP address for Docker containers. This is used for container networking.
Log level	Debug | Ino | Warn | Error | Fatal ; default: Warn	Set the log level for the Docker daemon. This determines the verbosity of logs.

The Authentication credentials tab:

Field	Value	Description
Authentication method	None | Username | Email; default: None	Specify the default bridge IP address for Docker containers. This is used for container networking.
Username	string; default: none	Enter the username for your Docker account.
Password	string; default: none	Enter the password or Personal Access Token (PAT) for your Docker account.
Server address	url; default: https://registry-1.docker.io/v2/	Specify the Docker registry server address. This is required for authentication with private registries. If not specified 'https://registry-1.docker.io/v2/' will be used.
Check credentials	-(interactive button)	Checks docker account credentials.
Email	email address; default: none	Enter the email address associated with your Docker account.
