Overlapping subnets with IPsec solution

The information on this page is updated in accordance with the 00.07.17.4 firmware version.

Introduction

This article provides an extensive configuration example with details on how to configure Ipsec with overlapping subnets.

Configuration overview and prerequisites

Prerequisites:

• Two RUTxxx routers of any type.
• A SIM card with a Public Static or Public Dynamic IP address for the IPsec server.
• An end device (PC, Laptop, Tablet, Smartphone) to configure the
• Installing package via package manager on both devices: IPtables NAT extra

---

Configuration scheme:

Router configuration

If you have familiarized yourself with the configuration scheme and have all of the devices in order, we can start configuring the routers using instructions provided in this section.

Basic tunnel

---

First of all, let’s configure a simple connection between two IPsec instances, i.e., RUT1 and RUT2.

RUT1 configuration

---

1. Enable instance.
2. Remote endpoint (Only one side of IPsec needs to have it configured)
3. Enter the Pre shared key(a shared password used for authentication between the peers. The value of this field must match on both instances).
4. Select tunnel Type
5. Enter Local subnet (an IP address/Subnet mask of the router on which the IPsec instance is configured).
6. Enter Remote subnet

RUT2 configuration

---

1. Enable instance.
2. Enter Remote endpoint
3. Enter Pre shared key (a shared password used for authentication between the peers. The value of this field must match on both instances).
4. Select tunnel Type
5. Enter Local subnet (an IP address/Subnet mask of the router on which the IPsec instance is configured).
6. Enter Remote subnet

Check IPsec tunnel status

---

If you’ve followed all the steps above, your configuration should be complete. However, as with any configuration, it is wise to test the setup to ensure it works properly. This can be verified by running swanctl --list-sas command in RUT CLI, you should see tunnel between virtual networks:

root@RUT1:~# swanctl --list-sas
Server: #7, ESTABLISHED, IKEv1, da0c8d300529bd5a_i 812482f852fb55b7_r*
  local  '192.168.2.124' @ 192.168.2.124[500]
  remote '192.168.2.145' @ 192.168.2.145[500]
  AES_CBC-128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1536
  established 2409s ago, rekeying in 11816s
  Server_c: #2, reqid 1, INSTALLED, TUNNEL, ESP:AES_CBC-128/HMAC_SHA1_96/MODP_1536
    installed 2408s ago, rekeying in 1017s, expires in 1555s
    in  c0795e33,      0 bytes,     0 packets
    out c7a0bca0,      0 bytes,     0 packets
    local  192.168.3.0/24
    remote 192.168.4.0/24

Firewall configuration

After establishing IPsec tunnel it's necessary to map LAN network IP addresses to virtual IPsec network addresses, for this we'll use iptables NETMAP target. Insert these IPtables rules into WebUI -> Network -> Firewall -> Custom rules.

RUT1 Firewall configuration

---

iptables -t nat -I POSTROUTING -s 192.168.1.0/24 -d 192.168.4.0/24 -j NETMAP --to 192.168.3.0/24
iptables -t nat -I PREROUTING -s 192.168.4.0/24 -j NETMAP --to 192.168.1.0/24

RUT2 Firewall configuration

---

iptables -t nat -I POSTROUTING -s 192.168.1.0/24 -d 192.168.3.0/24 -j NETMAP --to 192.168.4.0/24
iptables -t nat -I PREROUTING -s 192.168.3.0/24 -j NETMAP --to 192.168.1.0/24

Routing configuration

---

To reach virtual addresses routes should be configured under WebUI -> Network -> Routing -> Policy Based Routing.

Aplly configuration to the devices that virutal addresses would be reachable form LAN:

RUT1 Routing Configuration

---

Add new instance:

1. Enter ID: 123
2. Enter New configuration name: Ipsec

click in the new window make following changes:

Static IPv4 Routes

---

click and apply this to the route:

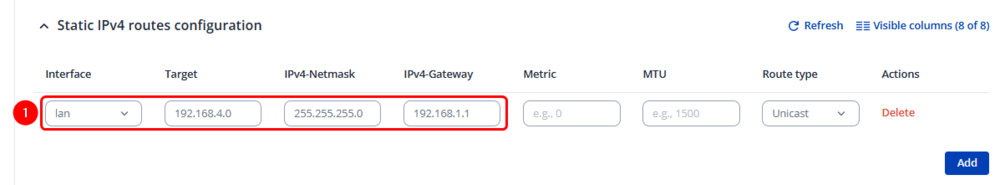

1. Select Interface: lan | Enter Target: 192.168.4.0 | Enter IPv4-Netmask: 255.255.255.0 | Enter IPv4-Gateway: 192.168.1.1

Routing Rules for IPv4

---

By clicking create rule under Routing Rules for IPv4 tab apply these changes to the rules:

RUT1 Policy Rule

---

1. Enter Priority: 1
2. Lookup Table: Ipsec (123)

RUT2 Routing Configuration

---

Add new instance:

1. Enter ID: 123
2. Enter New configuration name: Ipsec

click in the new window make following changes:

Static IPv4 Routes

---

click and apply this to the route:

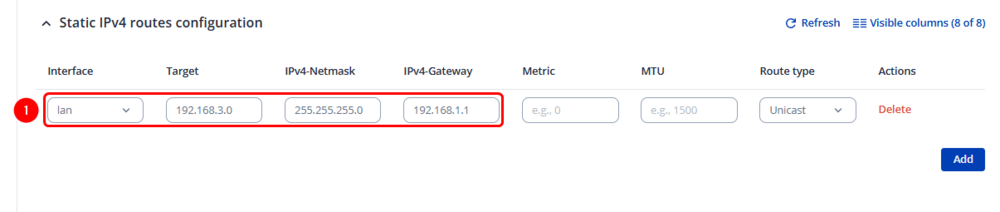

1. Select Interface: lan | Enter Target: 192.168.3.0 | Enter IPv4-Netmask: 255.255.255.0 | Enter IPv4-Gateway: 192.168.1.1

Routing Rules for IPv4

---

By clicking create rule under Routing Rules for IPv4 tab apply these changes to the rules:

RUT2 Policy Rule

---

1. Enter Priority: 1
2. Lookup Table: Ipsec (123)

Connectivity testing

---

Sending ping requests from the LAN to the virtual addresses

RUT1

---

RUT2

---
