NTP001 Setup Wizard
The information in this page is updated in accordance with firmware version NTP_R_00.01.01.
Summary
The Setup Wizard is a tool that offers a simplified version of other WebUI pages used to set some of the most relevant device parameters:
You will be greeted with the Setup Wizard the first time you login, after you have changed the device default password. On other logins you will be redirected to the Overview page, but you can reach the Setup Wizard any time via the System → Setup Wizard page.
This page is an overview of the Setup Wizard tool for NTP001 devices.
Set new password
On your very first login you will be required to change the device default password. This is done for safety reasons. In many cases devices are used to provide access to remote networks and systems. Since many manufacturers use similar default passwords (like admin, admin01, admin123, etc.) it is easy for attackers to gain access to devices that use such passwords and compromise the systems behind them. Therefore, to avoid such malicious attacks, this step is mandatory and you will not able to access the rest of the WebUI before you change the password.
The new password must contain:
- 8-32 characters;
- at least one upper case letter;
- at least one lower case letter;
- at least one digit.
After you have entered the new password, click 'Submit'. Afterwards you will be redirected to the first page of the Setup Wizard.

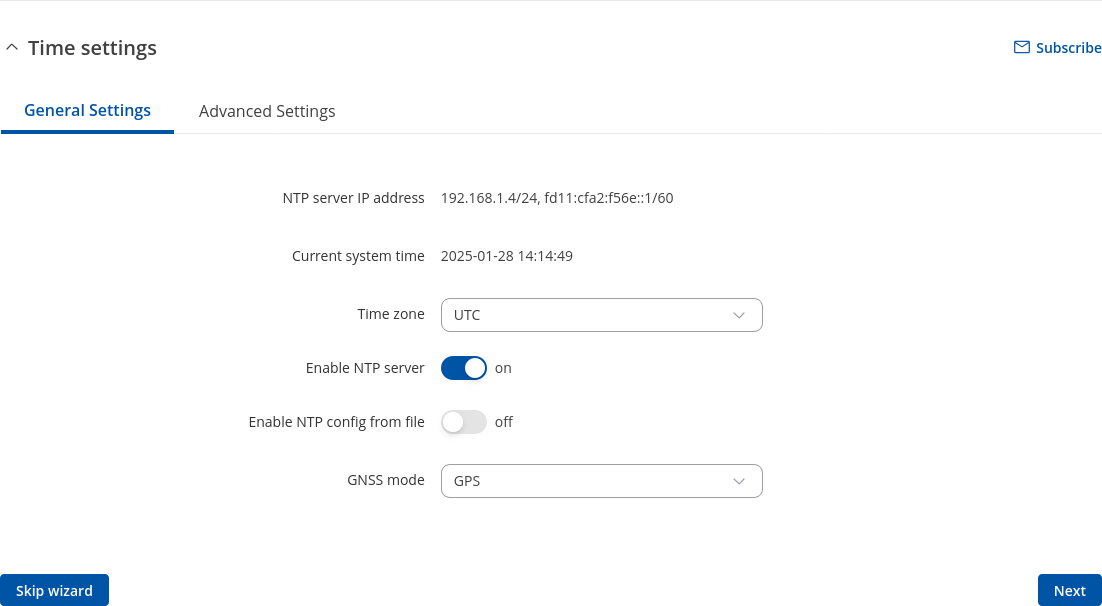

Time settings
The General settings section is used to configure the device's time, NTP server and GNSS mode.
If you wish to set the device's time zone settings later instead, you can do so via the Administration → Time page.
Network
The Network configuration section is used to configure the device's static IP address and netmask.
| Field | Value | Description |
|---|---|---|
| IPv4 address | ip; default: 192.168.1.4 | Your router's address on the network. |
| IPv4 netmask | netmask; default: 255.255.255.0 | A netmask is used to define how "large" a network is by specifying which part of the IP address denotes the network and which part denotes the device. |
If you wish to set the device's IP settings later instead, you can do so via the Network → IP Settings page.
