Summary[edit | edit source]

The WAN page is used to to set up WAN network interfaces, which are used to connect device with external networks.

This manual page provides an overview of the WAN windows in RUTX11 devices.

If you're having trouble finding this page or some of the parameters described here on your device's WebUI, you should turn on "Advanced WebUI" mode. You can do that by clicking the "Basic" button under "Mode", which is located at the top-right corner of the WebUI.

Networking rutx manual webui basic advanced mode v1.gif

WAN[edit | edit source]

The WAN section displays WAN network interfaces currently existing on this device.

Networking rutos manual wan modem 1 v1.png

Interface configuration[edit | edit source]

This section provides information on WAN interface configuration. There are two types of WAN interfaces on the device:

  • Ethernet WAN
  • Mobile WAN

Each supports different types of protocols and setups, which are described in the sections below.

To begin configuring an interface, click the 'Edit' button on the right side of the interface:

Networking rutos manual wan begin to edit v1.png

Wired WAN


This section covers all parameters directly related to a wired (Ethernet) WAN interface.

General Setup


The General Setup section is used to configure the protocol and all the different parameters that go along with each protocol. This section is different for each protocol.

General Setup: Static address

The static address protocol uses a predefined manual configuration instead of obtaining parameters automatically via a DHCP lease.

Networking rutos manual wan wan configuration general setup static address v1.png

Field Value Description
IPv4 address ip4; default: none The IPv4 address interface of this interface. An IP address identifies a device on a network and allows it to communicate with other devices.
IPv4 netmask netmask; default: none The IPv4 netmask of this interface. A netmask is used to define how "large" a network is by specifying which part of the IP address denotes the network and which part denotes a device.
DNS servers ip4; default: none DNS server addresses that this interface will use. If left empty, DNS servers are assigned automatically. To see what DNS servers are currently used, you can check the contents of the /tmp/resolv.conf.auto file.
General Setup: DHCP client

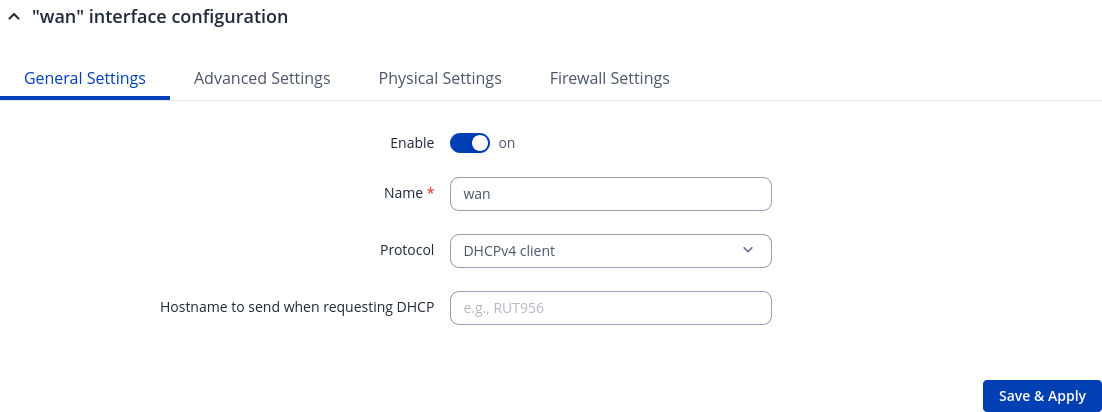

The DHCP client protocol is used to set up an interface which obtains its configuration parameters automatically via a DHCP lease.

Networking rutos manual wan wan configuration general setup dhcp client v1.png

Field Value Description
Hostname to send when requesting DHCP string; default: none A hostname for this interface used to identify this machine on the DHCP server.
General Setup: DHCPv6 client

The DHCPv6 client protocol is used to set up an IPv6 interface which obtains its configuration parameters automatically via a DHCP lease.

Networking rutos manual wan wan configuration general setup dhcpv6 client v1.png

Field Value Description
Request IPv6-address try | force | disabled; default: try Defines the behaviour for requesting an address.
Request IPv6-prefix of length integer [0..64] | Automatic | disabled ; default: Automatic Defines how this will request a IPv6 ULA-Prefix length. If set to 'disabled' the interface will obtain a single IPv6 address without a subnet for routing.
General Setup: PPPoE

The PPPoE protocol is used to set up a PPP (Point-to-Point Protocol) connection over the Ethernet port.

Networking rutos manual wan wan configuration general setup pppoe v1.png

Field Value Description
PAP/CHAP username string; default: none Username used in PAP/CHAP authentication.
PAP/CHAP password string; default: none Password used in PAP/CHAP authentication.

Advanced Settings


The Advanced Settings section is used to set up some of the more specific and less frequently used interface parameters. This section is different for each protocol.

Advanced Settings: Static address

Advanced Settings information for Static protocol is provided in the table below.

Networking rutos manual wan wan configuration advanced settings static address v1.png

Field Value Description
Override MAC address mac; default: none When set, uses a user-defined MAC address for the interface.
Override MTU integer [1..9200]; default: none Changes the interface's allowed maximum transmission unit (MTU) size. It is the largest size of a protocol data unit (PDU) that can be transmitted in a single network layer transaction.
Use gateway metric integer; default: none A metric specifies the priority of the gateway. The lower the metric, the higher the priority (0 for highest priority).


Advanced Settings: DHCP client

Advanced Settings information for DHCP protocol is provided in the table below.

Networking rutos manual wan wan configuration advanced settings dhcp client v1.png

Field Value Description
Use DNS servers advertised by peer off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Use custom DNS servers off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Note: this field only becomes visible when Use DNS servers advertised by peer is set to off
Use gateway metric integer; default: none A metric specifies the priority of the gateway. The lower the metric, the higher the priority (0 for highest priority).
Override MAC address mac; default: none Override MAC address of the WAN interface. For example, your ISP (Internet Service Provider) gives you a static IP address and it might also bind it to your computers MAC address (i.e., that IP will only work with your computer but not with your device). In this field you can enter your computer’s MAC address and fool the gateway in to thinking that it is communicating with your computer.
Override MTU integer [1..9200]; default: none Changes the interfaces allowed maximum transmission unit (MTU) size. It is the largest size of a protocol data unit (PDU) that can be transmitted in a single network layer transaction.
Advanced Settings: DHCPv6 client

Advanced Settings information for DHCPv6 protocol is provided in the table below.

Networking rutos manual wan wan configuration advanced settings dhcpv6 client v1.png

Field Value Description
Use DNS servers advertised by peer off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Use custom DNS servers off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Note: this field only becomes visible when Use DNS servers advertised by peer is set to off
Override MAC address mac; default: none When set, uses a user-defined MAC address for the interface.
Override MTU integer [1..9200]; default: none Changes the interface's allowed maximum transmission unit (MTU) size. It is the largest size of a protocol data unit (PDU) that can be transmitted in a single network layer transaction.
Advanced Settings: PPPoE

Advanced Settings information for PPPoE protocol is provided in the table below.

Networking rutos manual wan wan configuration advanced settings pppoe v1.png

Field Value Description
Obtain IPv6 address Automatic | Disabled | Manual; default: Automatic Defines behaviour for obtaining an IPv6 address.
Use DNS servers advertised by peer off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Use custom DNS servers off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Note: this field only becomes visible when Use DNS servers advertised by peer is set to off
Override MTU integer [1..1500]; default: none Maximum Transmission Unit (MTU) – specifies the largest possible size of a data packet.

DHCP Server: IPv6 Settings


Refer to the table below for information on the IPv6 Settings section.

Networking rutos manual wan wan configuration dhcp server ipv6 settings v1.png

Field Value Description
Router Advertisement-Service disabled | relay mode | server mode | hybrid mode; default: Disabled Specifies whether router advertisements should be enabled (server mode), relayed or disabled.
DHCPv6-Service disabled | relay mode | server mode | hybrid mode; default: Disabled Specifies whether DHCPv6 server should be enabled (server), relayed (relay) or disabled (disabled).
NDP Proxy disabled | relay mode | hybrid mode; default: Disabled Specifies whether NDP should be relayed or disabled.
Announced DNS server ip; default: none Supplements DHCP-assigned DNS server entries with ones specified in this field.
Announced DNS domains ip; default: none DNS domain handed out to DHCP clients.

Mobile WAN


This section covers all parameters directly related to a mobile WAN interface.

General Setup: Mobile


The General Setup section is used to configure the main parameters of a mobile WAN connection.

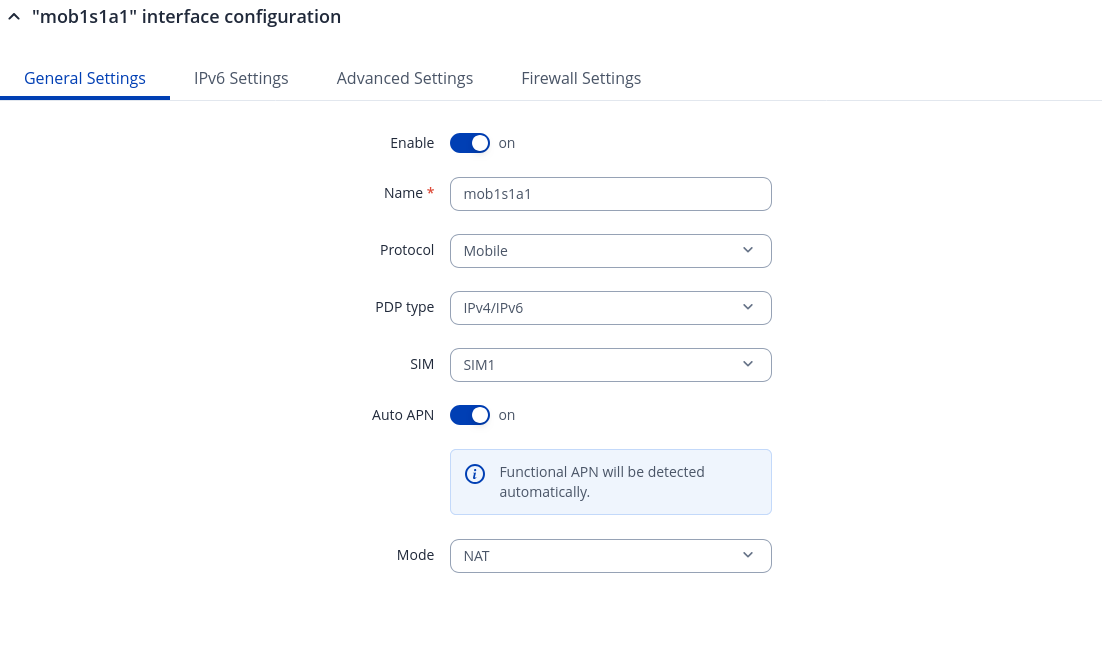

Networking rutos manual wan mobile configuration general setup v1.png

Field Value Description

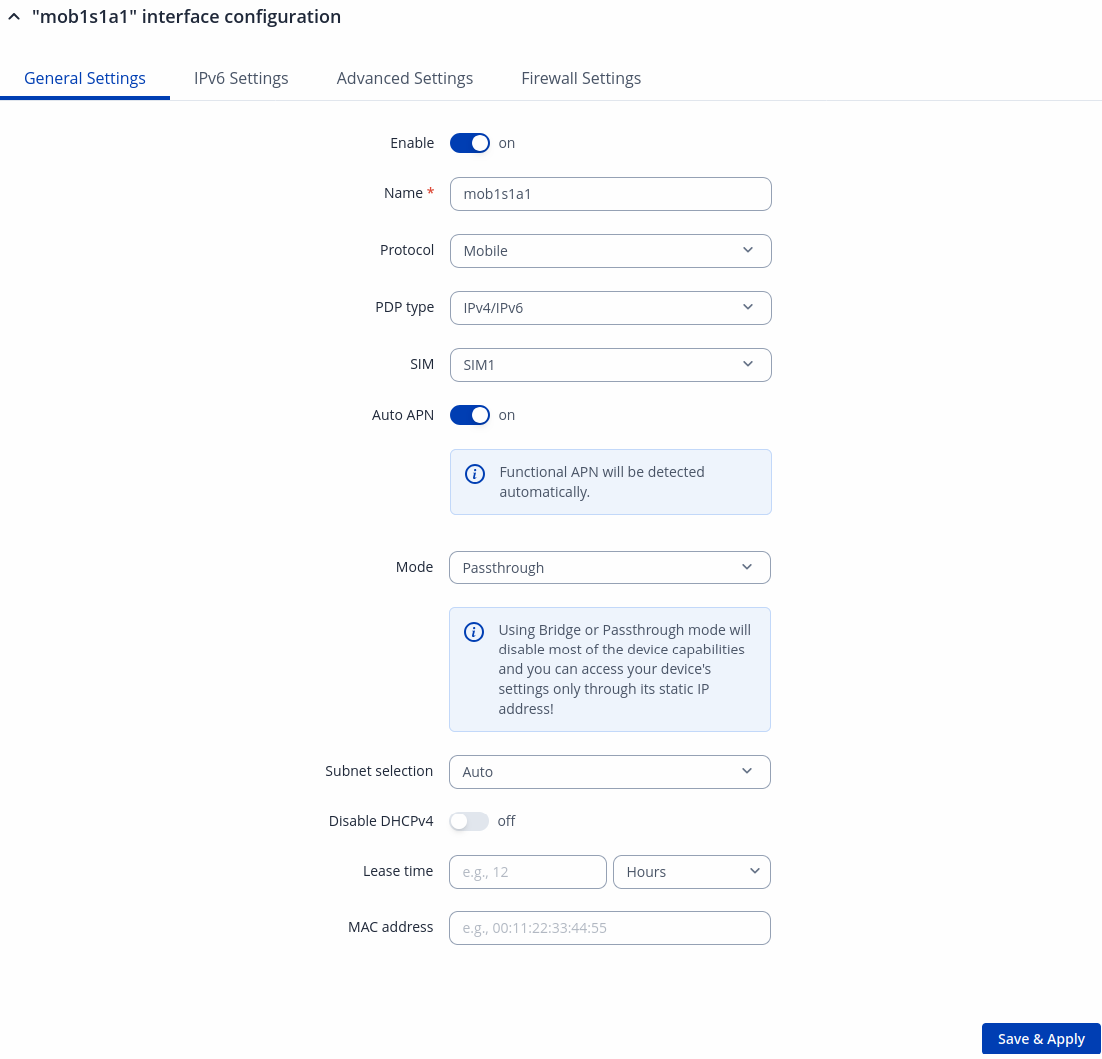

Mode NAT | Bridge | Passthrough; default: NAT Mobile connection operating mode.
  • NAT - the mobile connection uses NAT (network address translation).
  • Bridge - bridges the LTE data connection with LAN. The device assigns its WAN IP address to another device (first connected to LAN or specified with MAC address). Using Bridge mode will disable most of the device’s capabilities.
  • Passthrough - in this mode the RUTX11 shares its WAN IP to a single LAN device (first connected to LAN or specified with MAC address). The LAN device will get WAN IP of RUTX11 instead of LAN IP. Using Passthrough mode will disable most of the device’s capabilities.
PDP Type IPv4 | IPv6 | IPv4/IPv6; default: IPv4 Specifies what of address will be requested from the operator.
SIM SIM1 | SIM2; default: SIM1 Select which sim will be used for this interface.
Auto APN off | on; default: on The Auto APN feature scans an internal Android APN database and selects an APN based on the SIM card's operator and country. If the first automatically selected APN doesn't work, it attempts to use the next existing APN from the database.
APN / Custom APN string; default: none An Access Point Name (APN) is a gateway between a GSM, GPRS, 3G or 4G mobile network and another computer network. Depending on the contract, some operators may require you to use an APN just to complete the registration on a network. In other cases, APN is used to get special parameters from the operator (e.g., a public IP address) depending on the contract.
An APN Network Identifier cannot start with any of the following strings:
  • rac;
  • lac;
  • sgsn;
  • rnc;
it cannot end in:
  • .gprs;
and it cannot contain the asterisk symbol (*).
Bridge | Passthrough: MAC Address mac; default: none Specifies the MAC address of the device that will receive the mobile interface's IP address in Bridge or Passthrough mode.
Note: this field only becomes visible when using Bridge or Passthrough mode.

Advanced Settings: Mobile


Advanced Settings information for mobile WAN is provided in the table below.

Networking rutos manual wan mobile configuration advanced settings v1.png

Field Value Description
Use DNS servers advertised by peer off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Use custom DNS servers off | on; default: on Specifies whether to use DNS servers obtained automatically or specified manually.
Note: this field only becomes visible when Use DNS servers advertised by peer is set to off
Use gateway metric integer; default: none A metric specifies the priority of the gateway. The lower the metric, the higher the priority (0 for highest priority).
Override MTU integer [1..9200]; default: none Changes the interface's allowed maximum transmission unit (MTU) size. It is the largest size of a protocol data unit (PDU) that can be transmitted in a single network layer transaction.

Mobile Data Limit


The Mobile Data Limit section provides you with the possibility to set data usage limits for your mobile network interfaces and data usage warnings via SMS message in order to protect yourself from unwanted data charges.

In order to view the Mobile Data Limit section, the interface protocol must be set to Mobile.

Networking rutos manual wan mobile configuration mobile data limit v1.png

Field Value Description
Enable data connection limit off | on; default: off Turns mobile data limitations on or off.
Data limit* (MB) integer; default: 1000 The amount of data that is allowed to be downloaded over the specified period of time. When the limit is reached, the device will no longer be able to establish a data connection until the period is over or the data limit is reset.
Period Month | Week | Day; default: Day Data limit period after which the data counter is reset on the specified Start day.
Start day | Start hour day [1..31] | day [Monday..Sunday] | hour [1..24]; default: hour 0 Specifies when the period of counting data usage should begin. After the period is over, the limit is reset and the count begins over again.
Enable SMS warning off | on; default: off Turns SMS warning on or off. When turned on and configured, sends an SMS message to a specified number after the SIM card uses a specified amount of data.
Data limit* (MB) integer; default: none The received data limit before sending an SMS warning. After reaching using the the amount of data specified in this field, the router will send an SMS warning message to the specified phone number.
Phone number phone number; default: none Recipient's phone numbers.
